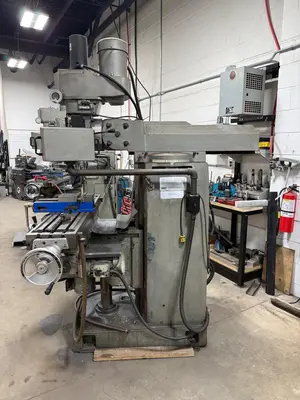

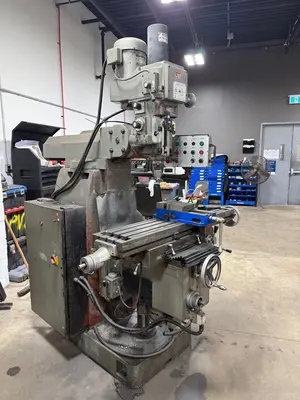

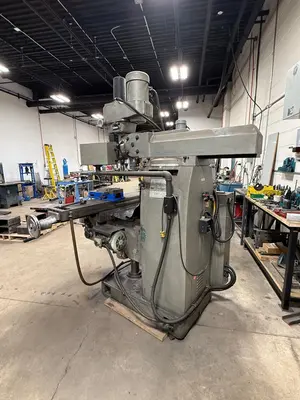

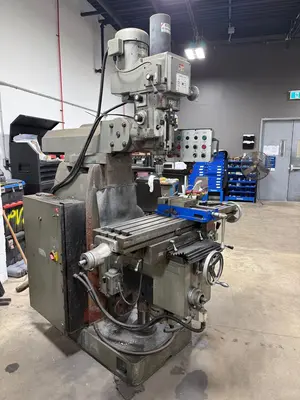

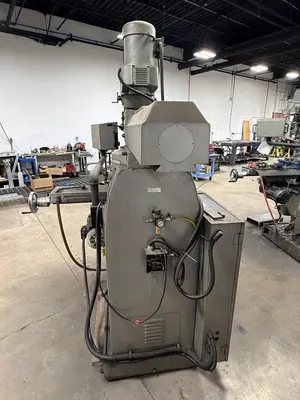

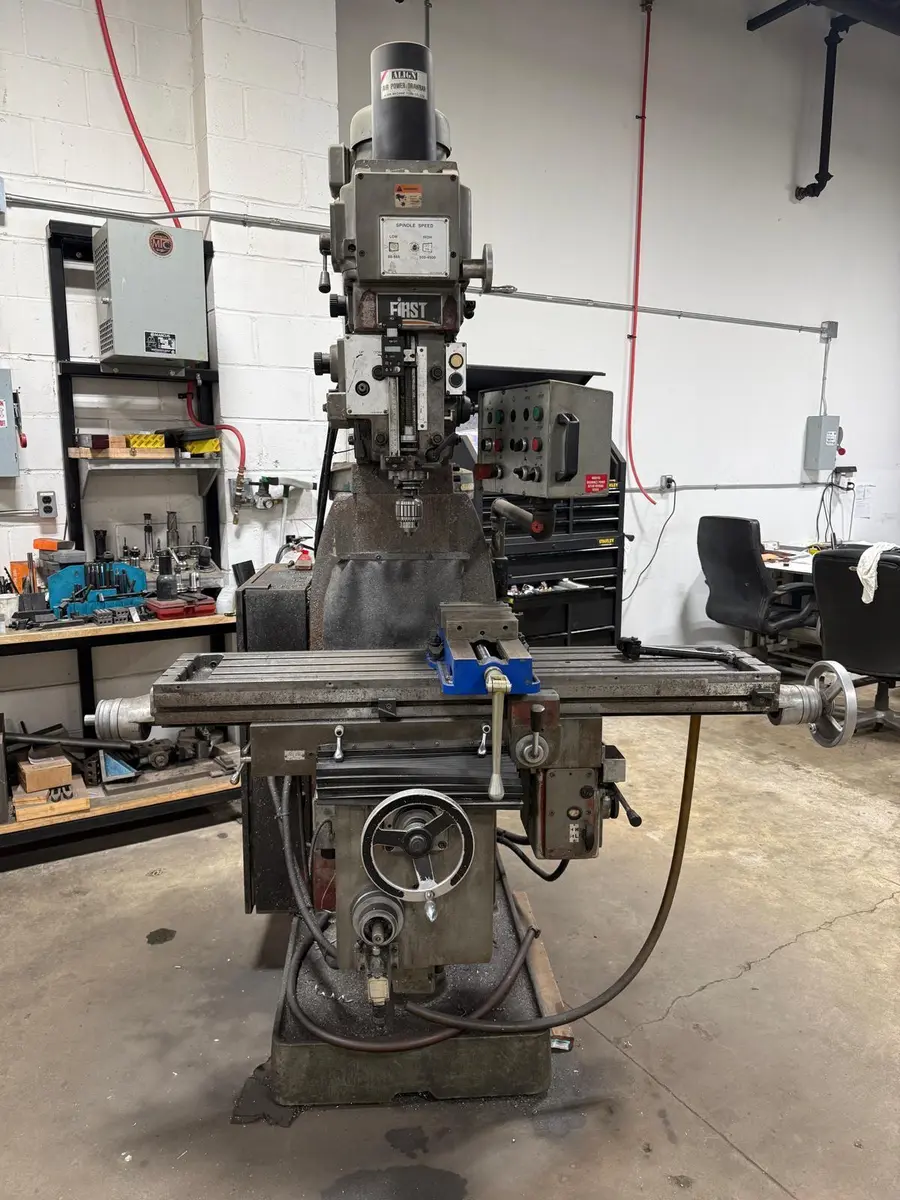

2007 FIRST LC-20VSG VERTICAL KNEE MILLING MACHINE

Description

2007 FIRST LC-20VSG VERTICAL KNEE MILLING MACHINE

Manufacturer: Long Chang Machinery Co.
Model: LC-20VSG
Mfg Date: 2007

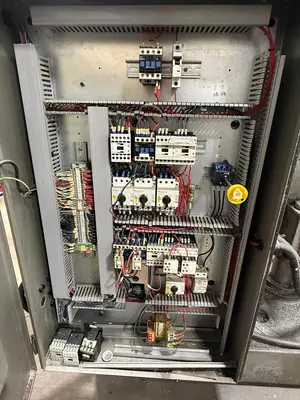

POWER: 575v, 60hz, 3ph

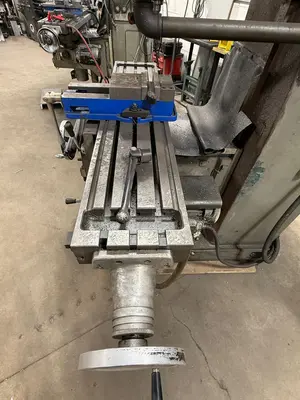

TABLE
Table Size: 52 in x 10 in
T-Slots: 3
T-Slot Width: 0.63 in
T-Slot Pitch: 2.5 in
Maximum Table Load: 1,100 lb

AXIS TRAVELS
X-Axis Travel (Longitudinal): 36.2 in
Y-Axis Travel (Cross): 16.9 in
Z-Axis Travel (Knee): 18.0 in

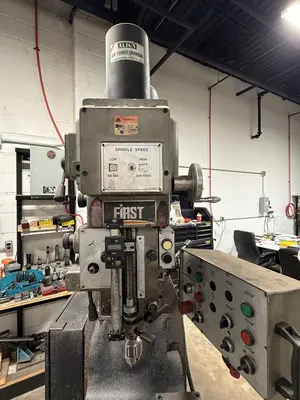

SPINDLE & HEAD
Spindle: R8

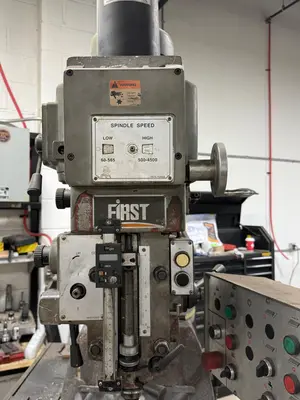

Spindle Speed Range (Low): 60 – 565 RPM
Spindle Speed Range (High): 500 – 4,500 RPM
Maximum Spindle Speed: 4,500 RPM
Speed Change: Mechanical (2-range head)
Spindle Motor Type: Induction motor
Motor Manufacturer: Hua Shin Electric Co., Ltd.
Motor Brand Marking: Skyey
Motor Speed: 1,720 RPM
Motor Insulation Class: Class E
Motor Duty: Continuous (CONT)
Motor Rotor Class: C

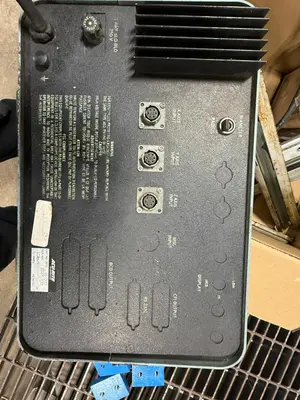

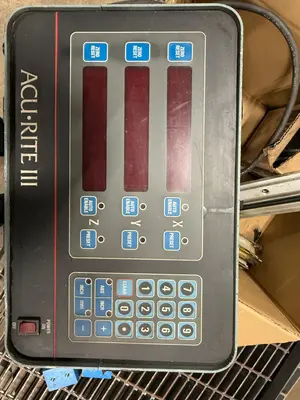

DRO
DRO Brand: ACU-RITE
DRO Model: ACU-RITE III
Axes Displayed: X, Y, Z
Functions:
Inch / mm conversion
Absolute / Incremental
Preset
Zero reset per axis
Numeric keypad entry

*DRO Included*
**Table vice NOT included**

Weight: 1800 kg
Machine Dimensions: 74'' x 83'' x 92''
