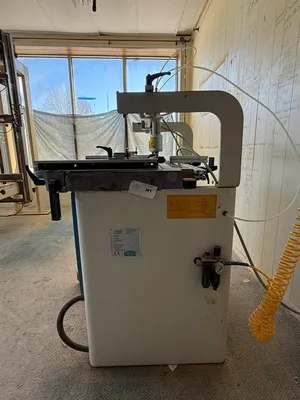

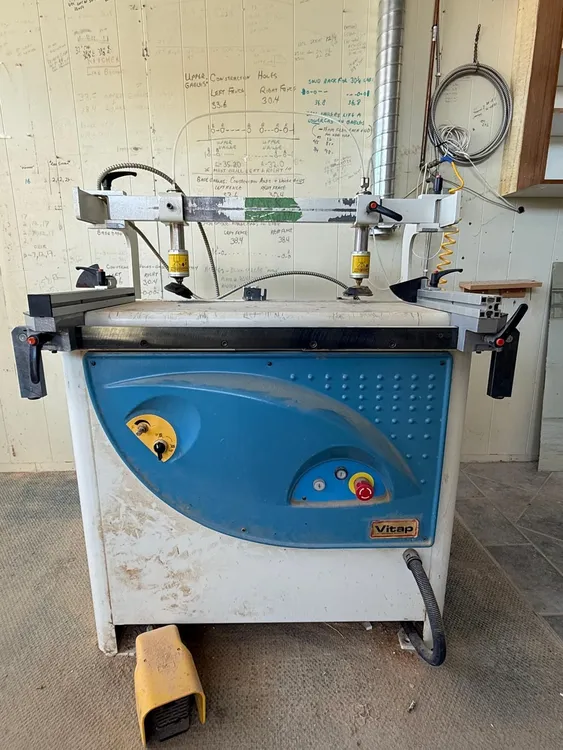

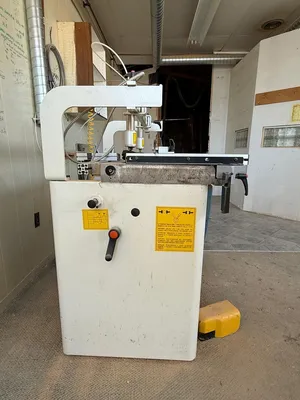

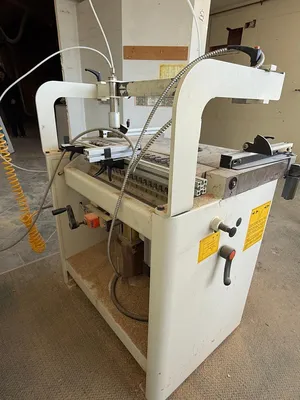

2001 VITAP ALFA21T BORING/DRILLING MACHINE

Description

2001 VITAP ALFA21T BORING/DRILLING MACHINE

Manufacturer: VITAP
Model: ALFA21T
Mfg Date: 2001

Power: 600v, 60hz, 3Ph

table size: 30'' x 15''

Machine Type
Semi-automatic single-head multi-boring machine
Designed for cabinet, furniture, and panel drilling
Suitable for horizontal and vertical boring

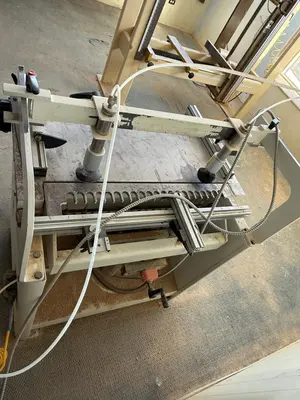

Boring Head / Spindles
Number of spindles: 21
Spindle spacing: 32 mm (1.26'')
Spindle rotation speed: 2,800 RPM
Spindle type: Quick-change chucks
Bit shank size: 10 mm

Drilling Capacity
Maximum drilling depth: 80 mm (3.15'')
Boring head stroke: 80 mm
Maximum horizontal boring height: 70 mm (2.7'')
Maximum boring distance (center to center): 640 mm (25.2'')

Head Positioning
Boring head tilt:
Vertical
Horizontal
Intermediate angled positions (tilting boring group)

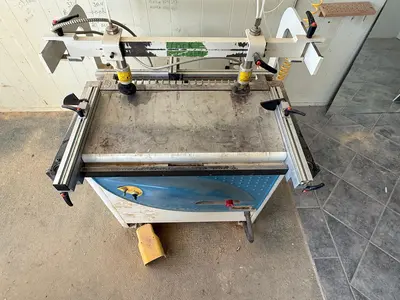

Worktable / Panel Capacity
Worktable size: 864 × 500 mm (34'' × 19.7'')
Maximum panel width: 800 mm (31.5'')
Minimum panel thickness: 10 mm (0.39'')
Maximum panel thickness: 85 mm (3.35'')

Clamping & Positioning
Pneumatic panel clamping system
Dual safety clamps
Mechanical digital indicator for head height
Adjustable side and front fences with metric scales
Reference fence for repeatable hole patterns

Weight: 2540 lbs
Machine Dimensions: 43'' x 37'' x 50''
