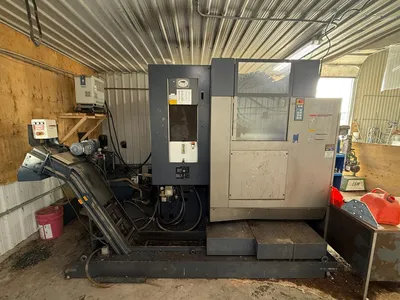

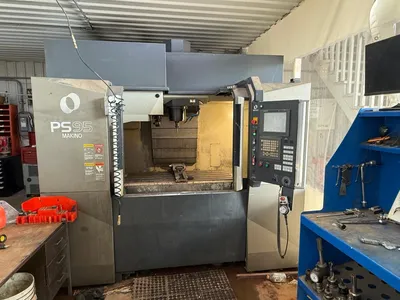

2011 MAKINO PS95 VERTICAL MACHINING CENTER

Description

2011 MAKINO PS95 VERTICAL MACHINING CENTER

Manufacturer: Makino
Model: PS95
Mfg Date: 2011

POWER: 400v, 60hz, 3ph

Hours:
Power On Time: 17,585 Hours 9 Minutes
Run Time: 621 Hours 30 Minutes 29 Seconds
Cutting Time (Spindle Cutting): 4,447 Hours 51 Minutes 28 Seconds

Travels
X-Axis Travel: 920 mm (36.2 in)
Y-Axis Travel: 510 mm (20.1 in)
Z-Axis Travel: 460 mm (18.1 in)

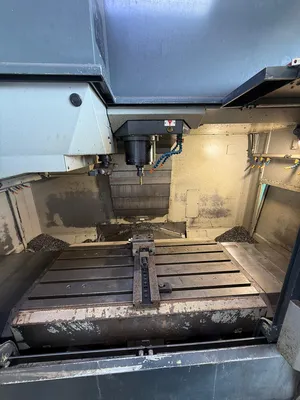

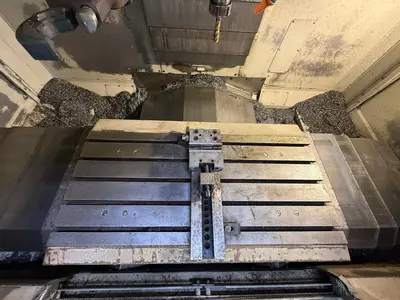

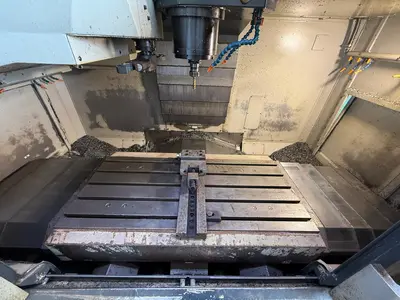

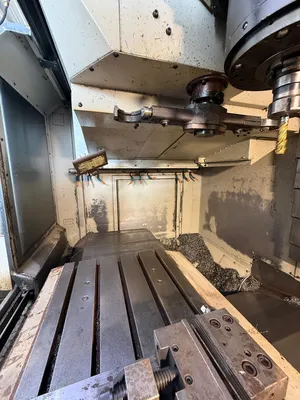

Table
Table Size: 46 in × 19 in
Max Table Load: 2,200 lbs (1,000 kg)
T-Slots: Standard VMC slot configuration

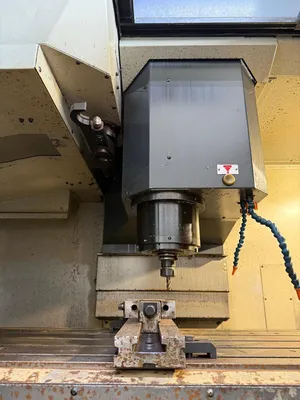

Spindle
Spindle Speed Range: 50 – 12,000 RPM
Spindle Taper: CAT40 (7/24 No. 40 Taper)
Spindle Air Blow: Standard
Spindle Motor: 20 HP (15 kW)
Coolant Thru Spindle: Yes

Tool Changer
Automatic Tool Changer Capacity: 30 tools
Tool-to-Tool Time: 1.5 sec class

Rapids / Feed
Rapids (X/Y): 36,000 mm/min
Rapids (Z): 30,000 mm/min
Cutting Feed: 30,000 mm/min

Accuracy
Positioning Accuracy: ±0.0002 in (±0.005 mm)
Repeatability: ±0.0001 in (±0.003 mm)

Included With This Machine

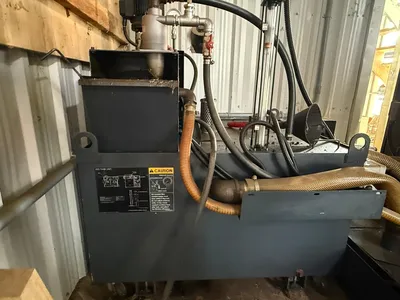

Coolant Thru Spindle (CTS)

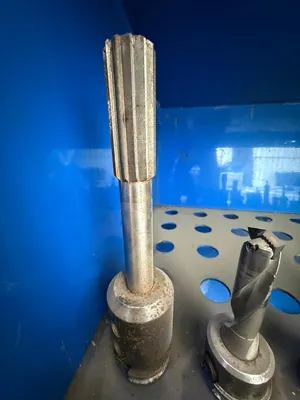

Large lot of carbide thru-coolant drills
Ingersoll indexable face mill
Indexable face mill
Indexable slotting / side milling cutter

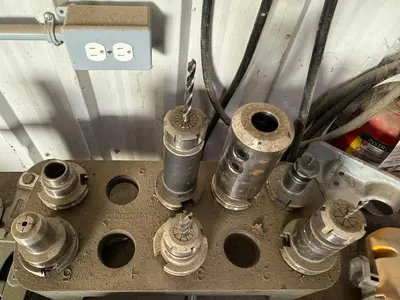

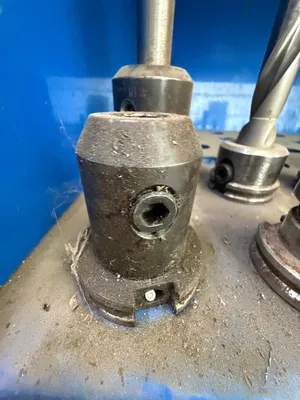

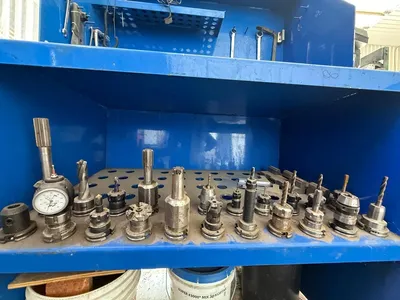

CAT 40 end mill holder
CAT 40 ER collet chuck
CAT 40 shell mill arbor
Solid carbide end mills
Twist drills

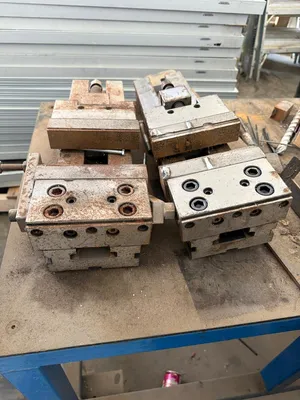

Precision milling vises

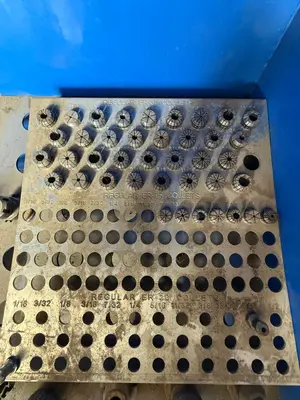

ER-32 collet set
ER-25 collet set
ER-20 collet set
Round fixture / tooling plate

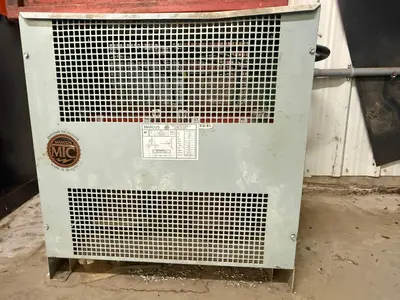

Transformer

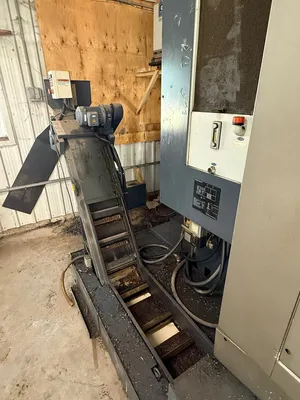

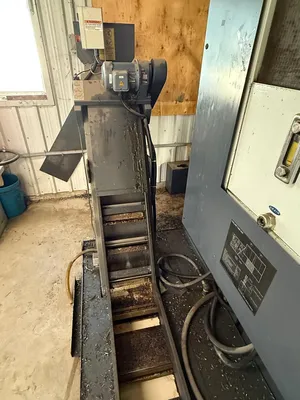

Chip conveyor

Weight: 15,000 lbs
Dimensions: 10' x 8.5' x 8.5ft
