| Tonnage | 350 T | 317.515 t |
| Type | HYD | HYD |
| Overall Length | 14' | 4.3 m |
| Between Housings | 147" | 3.7 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 5 | 5 |
| Control | CNC | CNC |
| Dimensions | 99.2 in (W) × 228.3 in (L) × 102.5 in (H) | 99.2 in (W) × 228.3 in (L) × 102.5 in (H) |
| Weight | 44430 lbs | 44430 lbs |

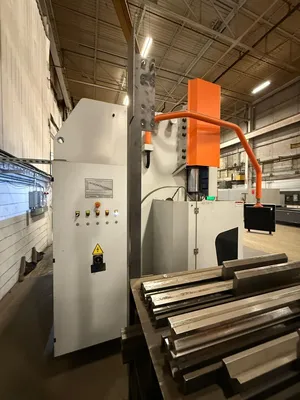

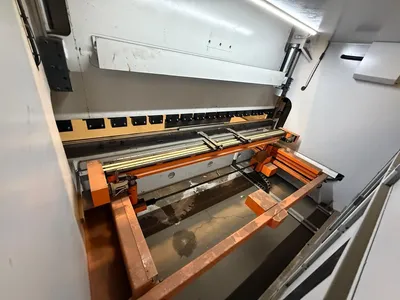

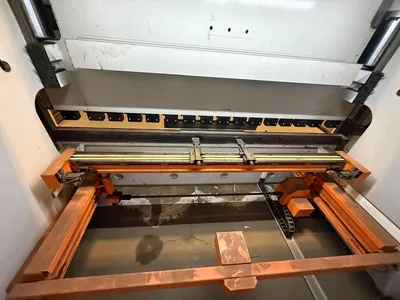

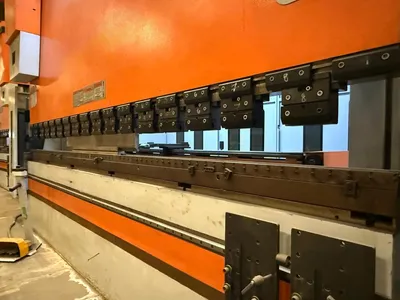

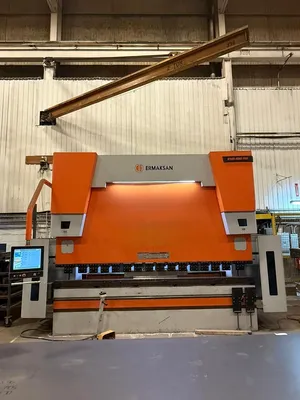

2023 ERMAKSAN SPEED-BEND PRO 352-TON CNC HYDRAULIC PRESS BRAKE
Manufacturer: Ermaksan
Model: Speed-Bend Pro 12.3×352
Mfg Date: 2023
POWER: 575 V, 60 Hz, 3 Ph
HOURS
Machine On Hours: 2,737 hrs
Bending Time: 143 hrs
Total Bend Cycles: 25,451
Specs:

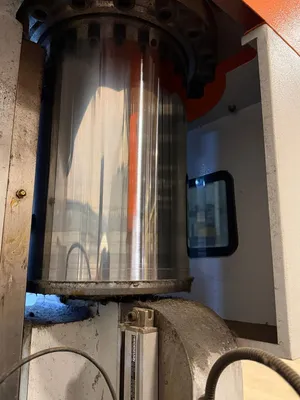

Machine Type: Synchronized Hydraulic CNC Press Brake
Capacity: 352 US Tons
Bending Length (Working Length): 12.3 ft (≈147 in / 3,750 mm)
Backgauge Travel (X-axis): 30 in

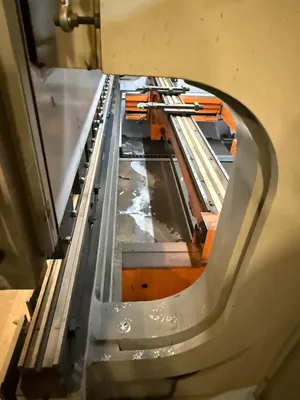

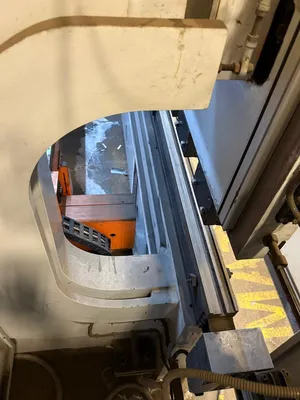

Throat depth: 74in
Distance between Housings 125in
Stroke: 8 in
Open Height: 18 in
Approach Speed: 5.5 in/sec
Safety Distance: 59 in
Main Motor Power: 50 HP
IP Rating: IP54

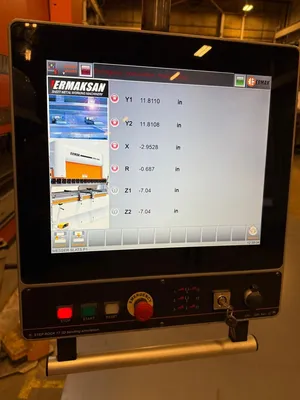

Control Type: CNC multi-axis
Weight: 44,430 lbs
Dimensions (Overall): 200 x 96 x 130in
