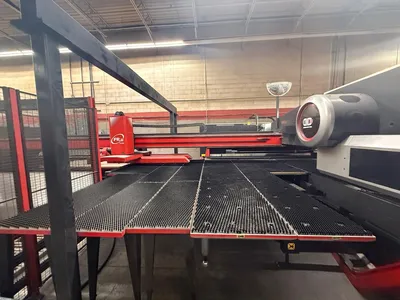

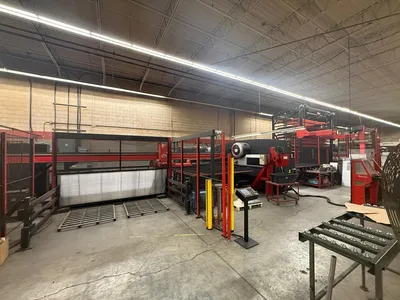

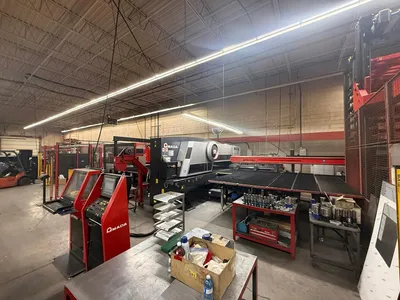

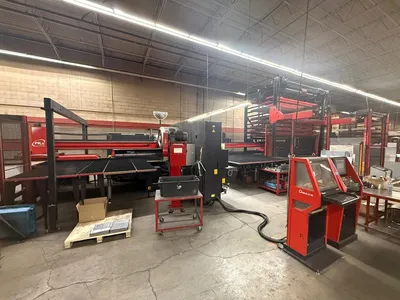

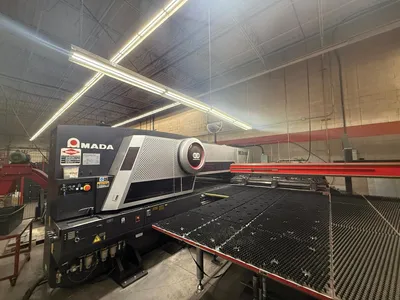

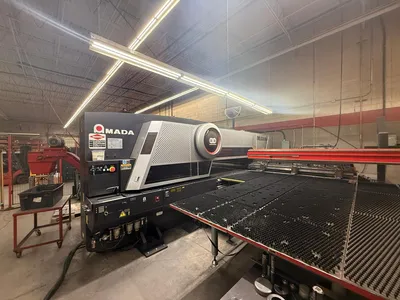

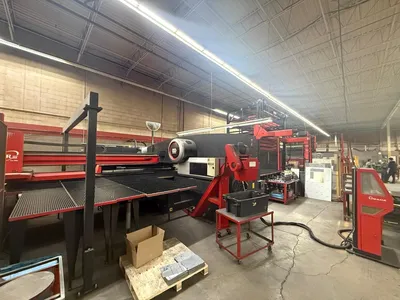

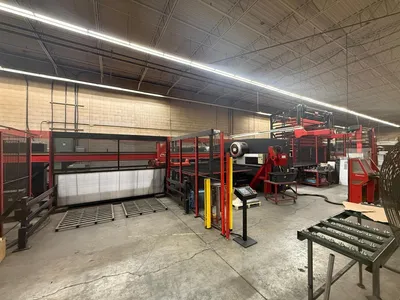

2012 AMADA EMLK3510NT CNC TURRET PUNCH / LASER COMBINATION SYSTEM WITH LOADER
Have one to sell?
ConditionUsed
1 available
2012 AMADA EMLK3510NT CNC TURRET PUNCH / LASER COMBINATION SYSTEM WITH LOADER
Manufacturer: Amada Co., Ltd.
Model: EMLK3510NT
Mfg Date: 2012
POWER:
Machine Power: 200/220 V, 50/60 Hz, 3 Ph
Loader Power: 400 V, 60 Hz, 3 Ph
HOURS:
Power On Time: 32,984 hours
Operating Time: 18,801 hours
Cutting Time: 7,452 hours
Specs:
Machine Type: CNC Turret Punch / CO₂ Laser Combination System with Automatic Storage / Loader

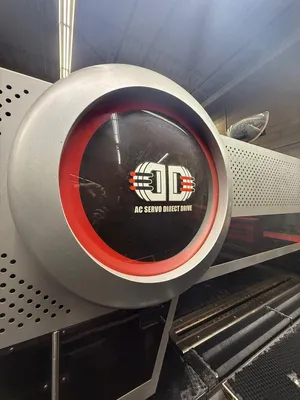

33 ton servo-electric punch
5 ft × 10 ft capacity system
Punching:
Press Capacity: 300 kN (30 metric tons / 33 US tons)
Punching Accuracy: ±0.004 in
Turret Speed: 30 rpm
Max Press Stroke Length: 1.456 in
Axis Travel:
X-Axis Travel: 120.079 in
Y-Axis Travel: 63.780 in
Feed Rates:
X-Axis Max Feed Speed: 328 fpm
Y-Axis Max Feed Speed: 262 fpm
YL-Axis Max Feed Speed: 262 fpm
Work Capacity:
Max Worksheet Size: 98.425 in × 50 in
Max Worksheet Thickness:
0.126 in (mild steel)
Max Worksheet Mass:
165 lb at F1
330 lb at F4
Laser:

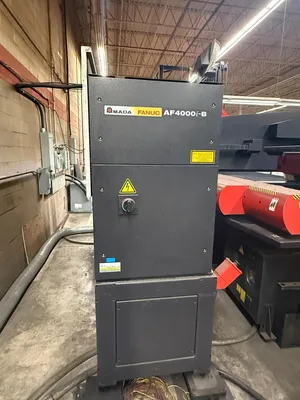

Laser Model: AF4000E
Laser Type: CO₂
Rated Power: 4000 W
Max Power (Peak): 5000 W
Pulse Frequency: 5 – 2000 Hz
Duty Range: 0 – 100%
Beam Wavelength: 10.6 µm
Beam Diameter: ≤1.063 in at source
Beam Divergence: ≤2 mrad
Laser Support Requirements:
Laser Gas Mixture: CO₂ / N₂ / He (5 / 40 / 55)
Laser Gas Consumption: ~10 L/h

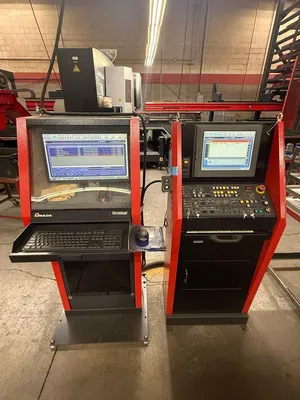

Control:

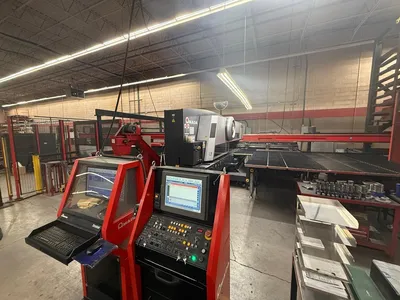

CNC Control: AMNC-F (FANUC 160i-LPB)
Controlled Axes: 7 Axes (X, Y, YL, Z, T, C, B + A press axis)
Positioning Method: Absolute / Incremental
Minimum Increment: 0.0001 in
Display: 15 in color TFT LCD touchscreen
Programming / Capacity:
Memory Capacity: 125 KB per program / 10 MB total
Program Format: ISO / EIA
Turret / Tooling:
Turret Type: Thick Turret
Stations: 58 Station
Auto Index Stations: 4
Performance:
Press Stroke Rate:
560 hits/min (2 mm pitch)
400 / 300 hits/min (1 in pitch)
520 / 310 hits/min (larger pitch)

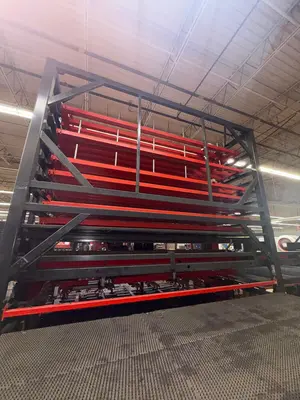

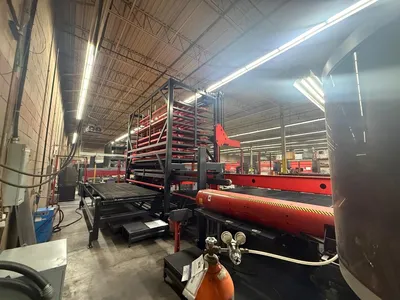

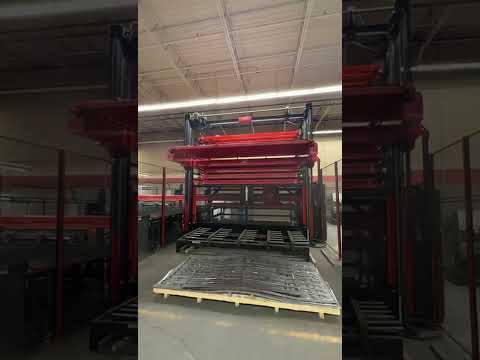

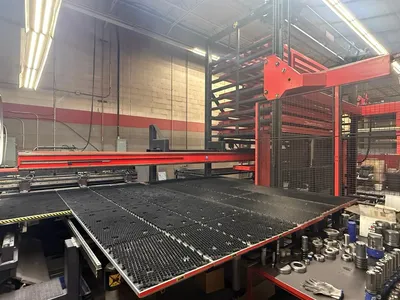

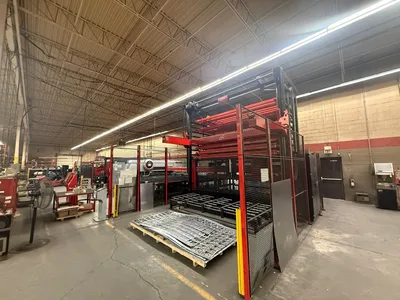

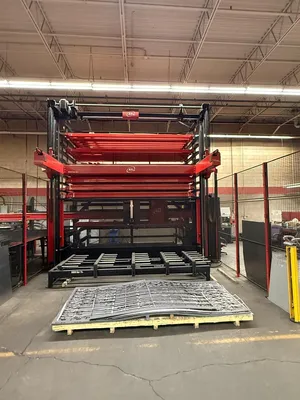

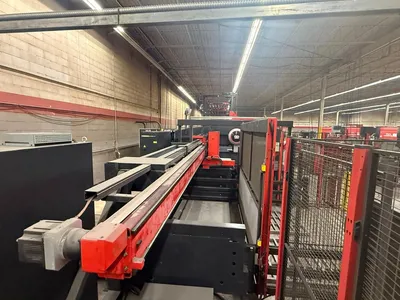

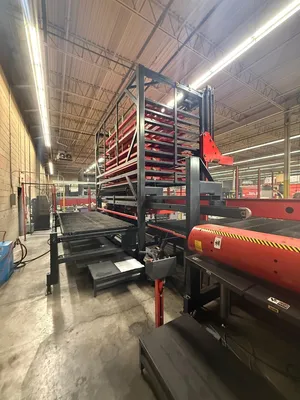

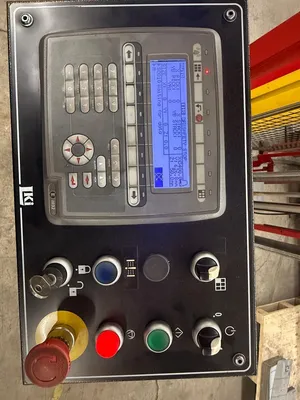

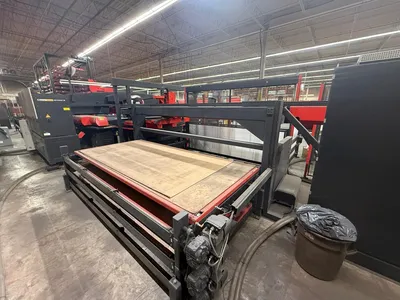

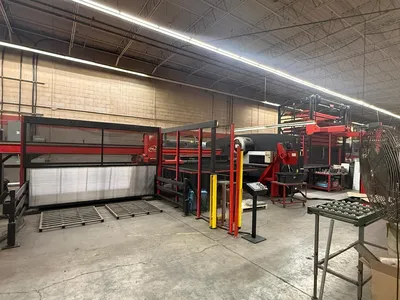

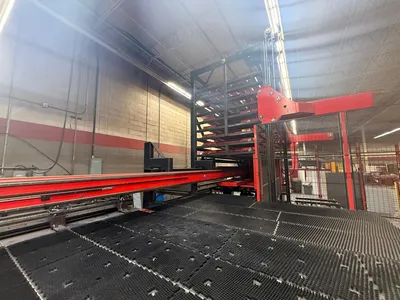

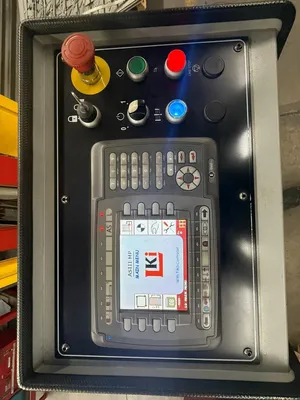

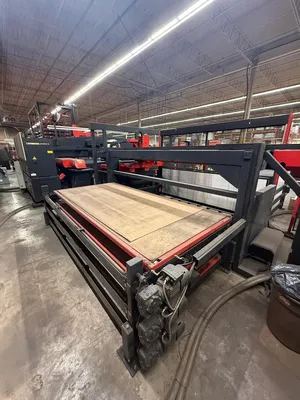

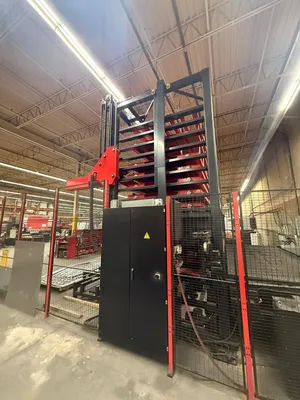

LOADER / AUTOMATION (LKI SYSTEM)
Manufacturer: LKI (OY LKI Kaldman AB)
Model: ASIII MP 300/40
Year: 2014
Overall Weight: 75,000 lbs
Overall Dimensions: 45 × 14 × 16 ft
