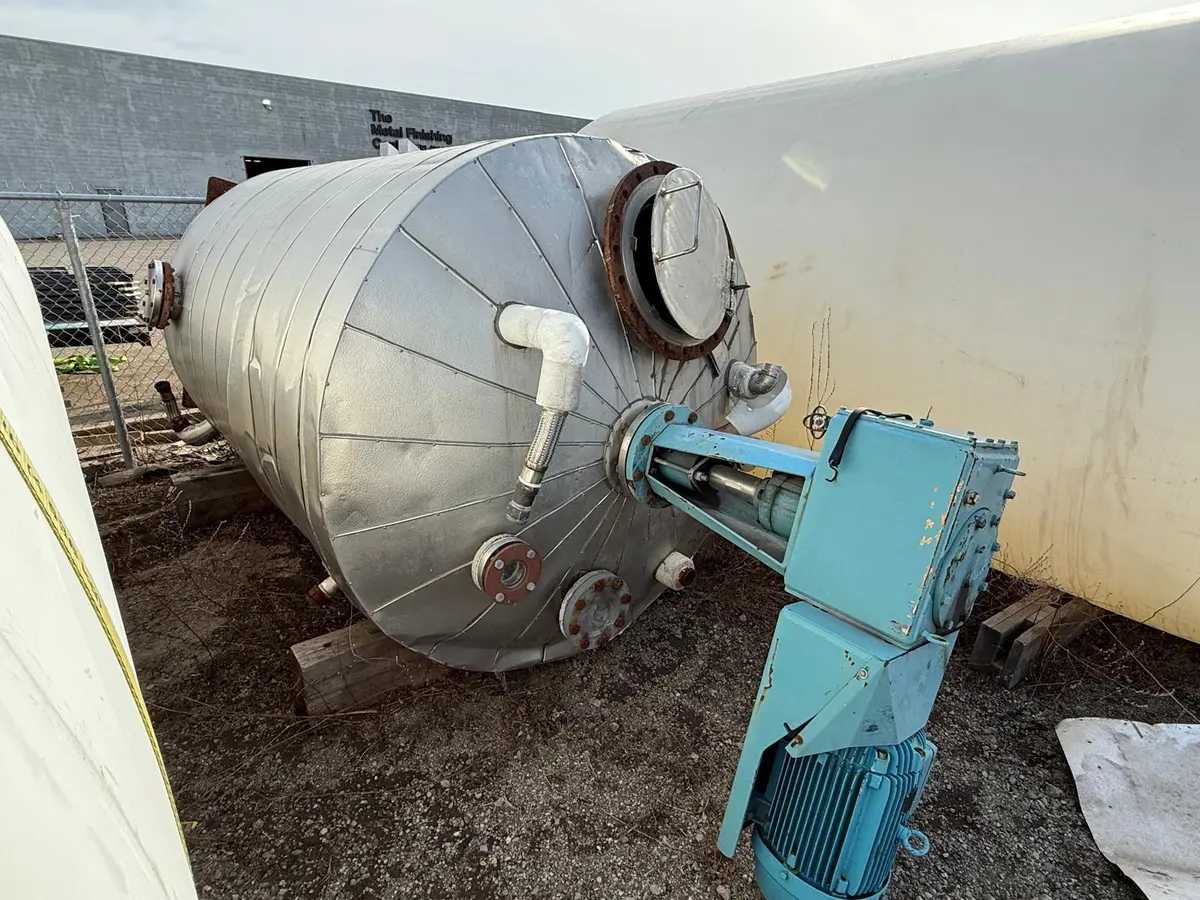

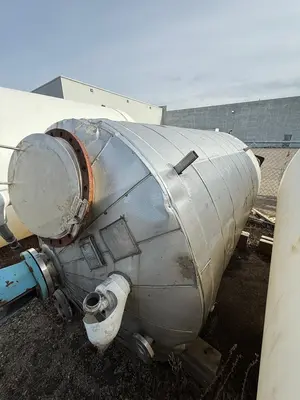

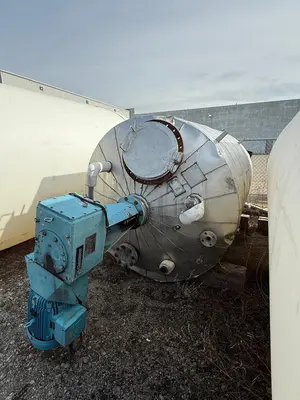

2,600 Gallon Jacketed Stainless Steel Reactor with Agitator

Description

2,600 Gallon Jacketed Stainless Steel Reactor with Agitator

Manufacturer: Chemineer (Agitator) / WEG (Motor)
Model: Chemineer 3HTA20
Type: Jacketed Stainless Steel Reactor with Top-Entry Agitator

Capacity
Working Capacity: 2,600 Gallons

Construction
Material: Stainless Steel
Shell Type: Jacketed (double wall)

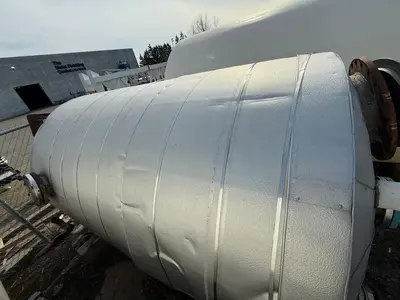

Insulation: Yes (aluminum cladding)
Orientation: Vertical reactor vessel
Mounting: Skid / base mounted
Agitation System
Agitator Manufacturer: Chemineer
Model: 3HTA20

Drive Details:
Motor HP: 20 HP
Motor Speed: 1755–1800 RPM
Output Speed: 155 RPM
Motor Specs
Manufacturer: WEG
Horsepower: 20 HP
Voltage: 575V
Frequency: 60 Hz
Phase: 3 PH
RPM: 1755
Enclosure: TEFC Explosion Proof
Class: Class I, Zone 1 hazardous rated
Frame: 256T

Internal Features

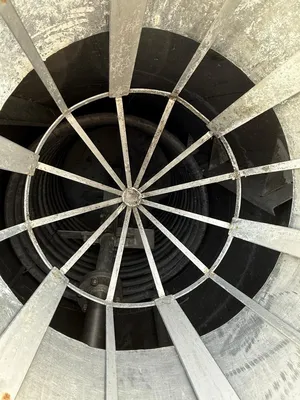

Internal helical coil / heating coil
Central agitator shaft with impeller
Baffles / structural supports inside vessel
Top entry drive with mechanical seal

Weight: 5000 kgs
Dimensions: 80 x 80 x 120in
