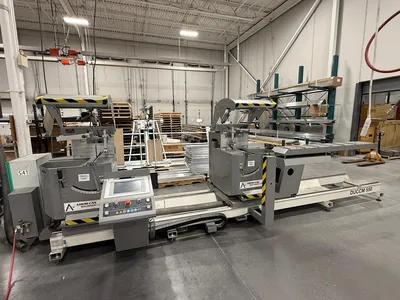

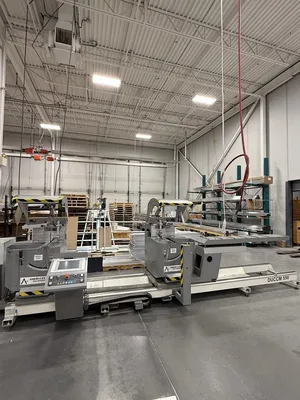

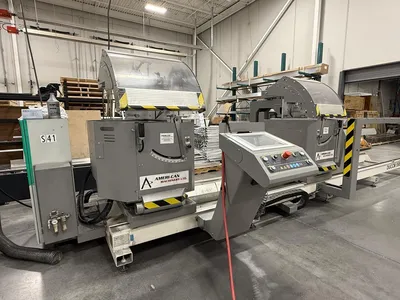

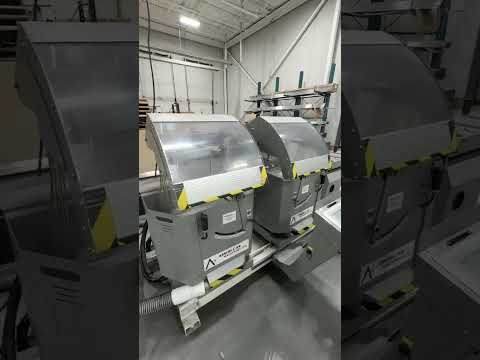

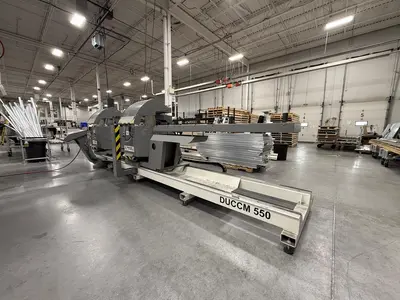

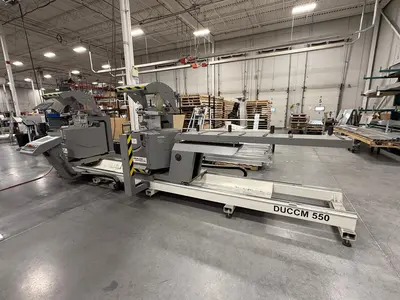

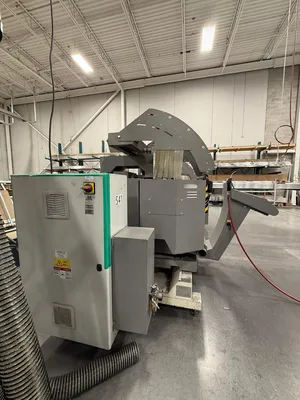

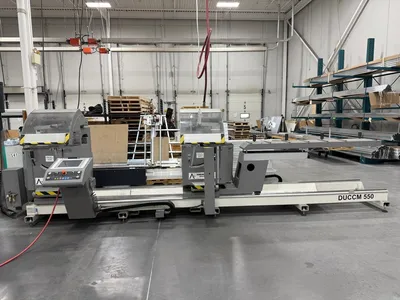

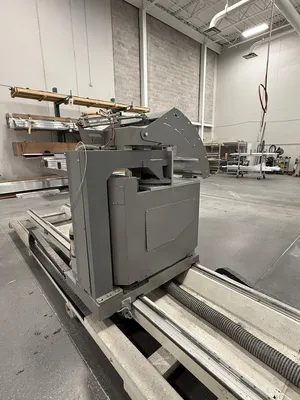

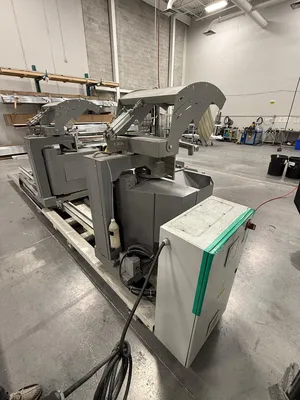

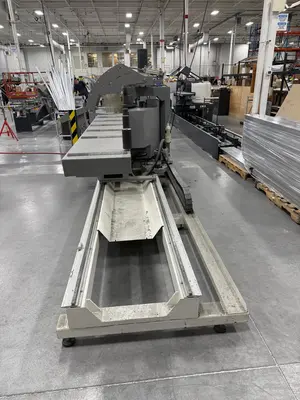

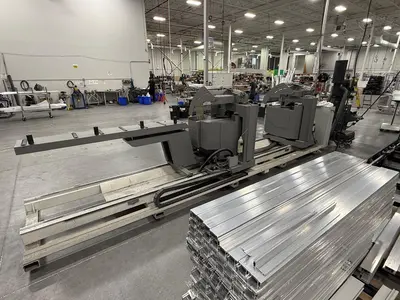

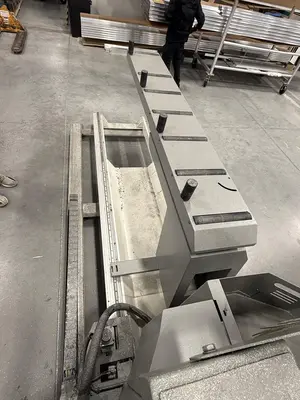

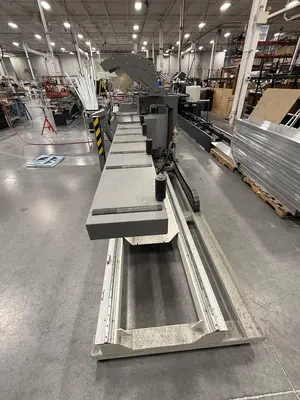

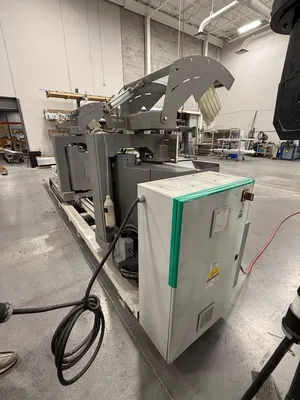

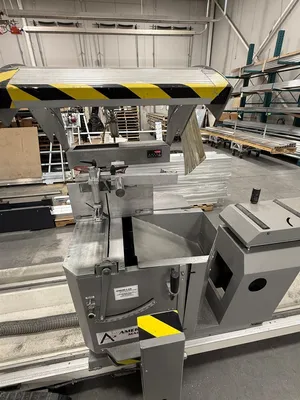

2017 MEPAL ITALIA REMIX 550 DOUBLE COMPOUND MITRE SAW

Description

2017 MEPAL ITALIA REMIX 550 DOUBLE COMPOUND MITRE SAW

Make: MEPAL ITALIA

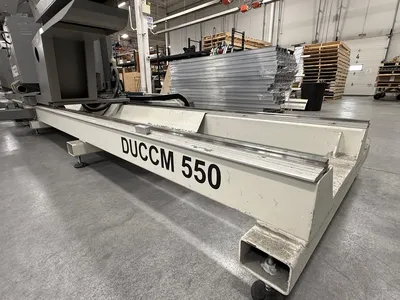

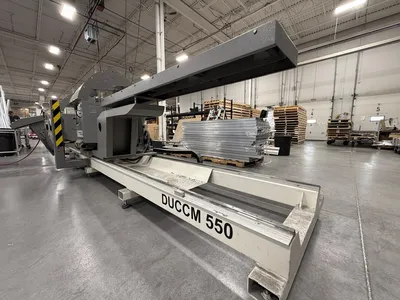

Model: REMIX DUCCM 550 (4M CONFIG)
Year: 2017

Power: 220v 60hz 3ph

Type: DOUBLE COMPOUND MITRE SAW

Cutting Capacity
Max Cutting Length: 157 in (4,000 mm)
Min Cutting Length: 16.5 in (420 mm)

Blade / Cutting System
Blade Diameter: 21.6 in (550 mm)
Number of Blades: 2
Blade Type: TCT (carbide tipped)
Blade Movement: Hydro-pneumatic up-cut (rising blades)

Motors
Main Motors: 2 × ~4 HP (3 kW each)
Angles / Movement
External Mitre: 90° to 140°
Internal Mitre: 90° to 20°
Tilting (Compound): 90° to 45° inward
Head Configuration

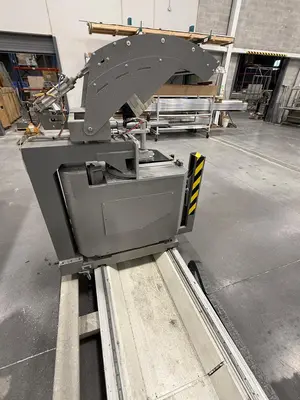

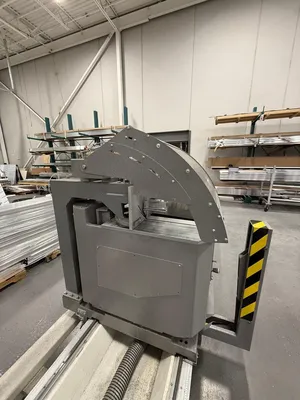

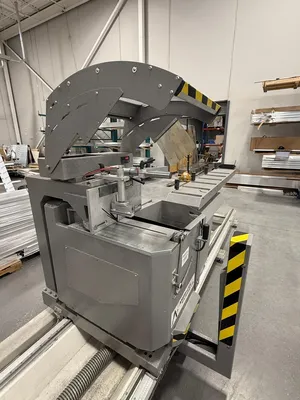

Left Head: Fixed

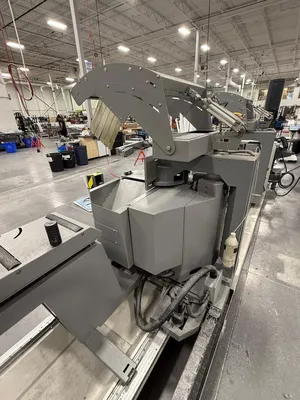

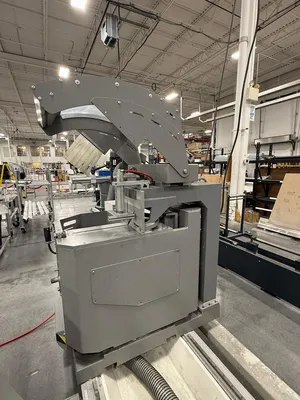

Right Head: Motorized movable (brushless drive)

Control

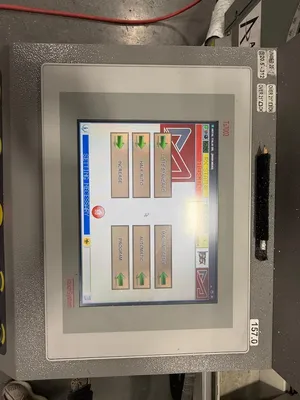

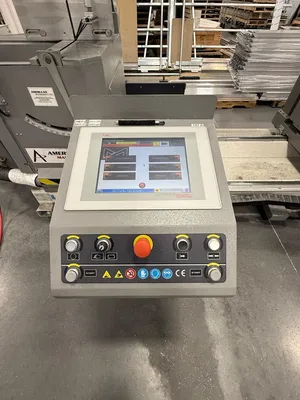

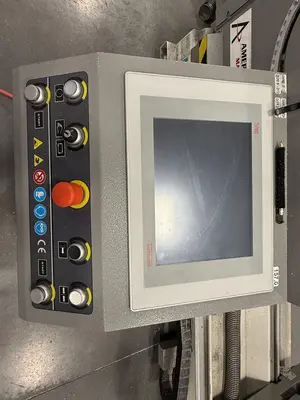

Control Type: CNC (Windows-based interface)
Cut List Programming: Yes
Positioning: Automatic via CNC

Clamping & Workholding

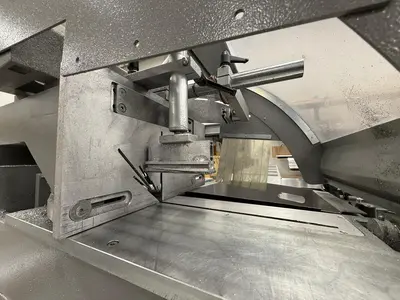

Vertical Clamps: Double per head (pneumatic)

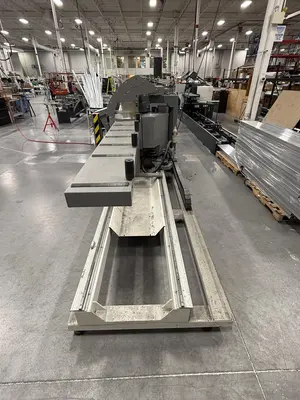

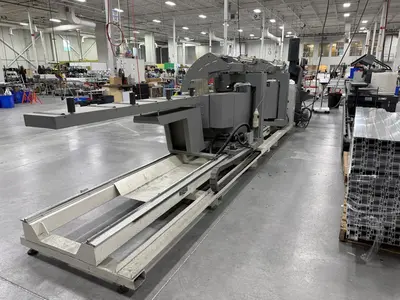

Work Support: Integrated roller supports (~8 ft / 2.5 m)

Lubrication / Pneumatics
Blade Lubrication: Pneumatic mist spray system
Air Requirement: Required for clamps and blade movement

Safety / Construction
Full Blade Guards
Enclosed Cutting Area
Emergency Stop System

Material Capability
Aluminum profiles
PVC
Light alloys

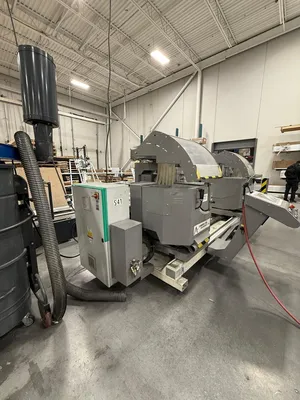

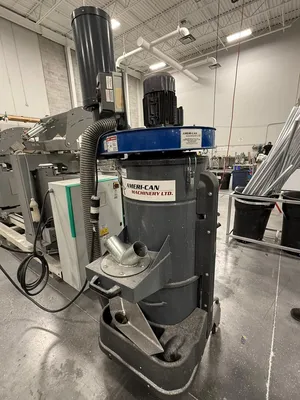

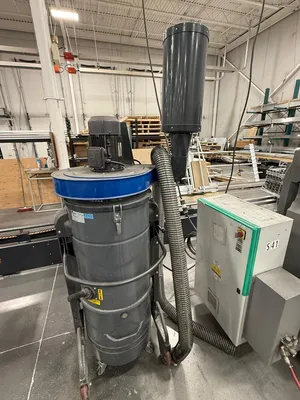

Delfin dust collector included
DELPIN ZFREVP500-004

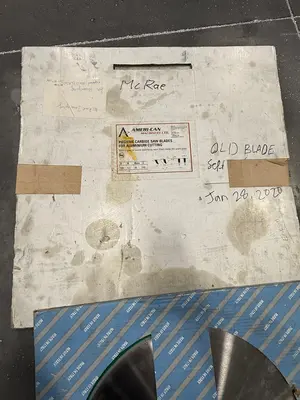

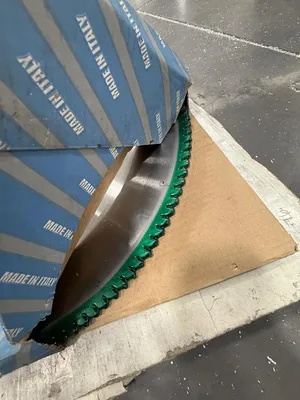

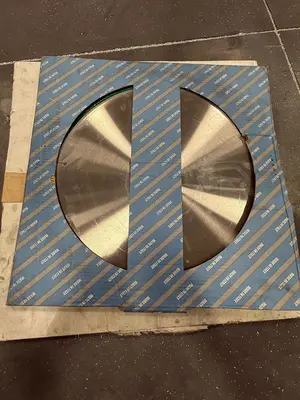

Includes spare positive carbide blades

Serviced/calibrated Q3 2025

Weight: 4200 lbs
Dimensions: 264 x 83 x 70 in
