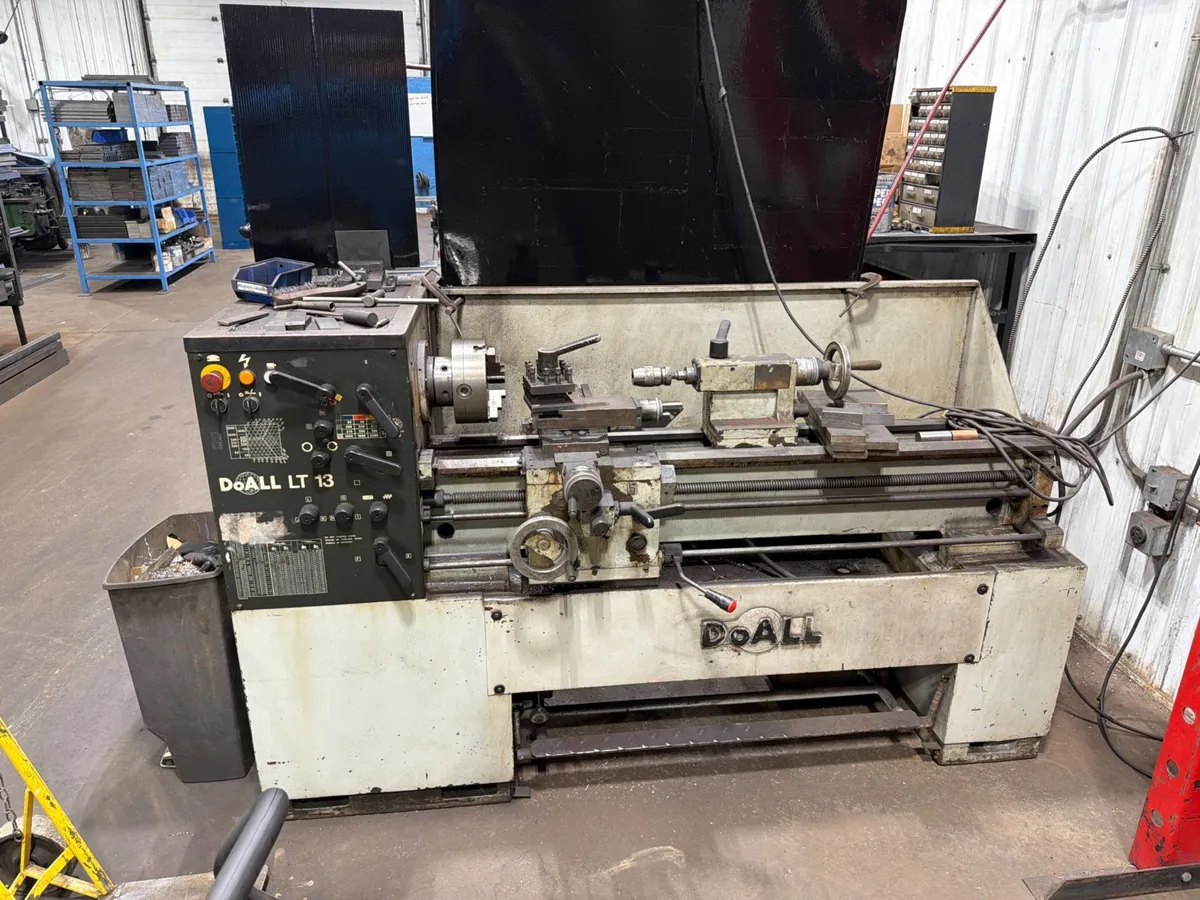

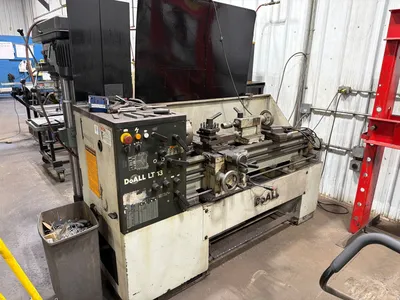

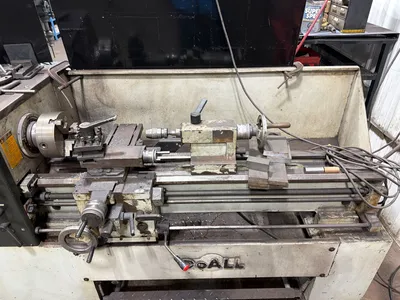

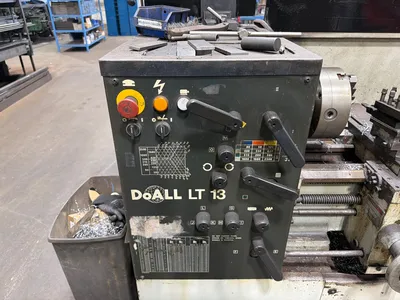

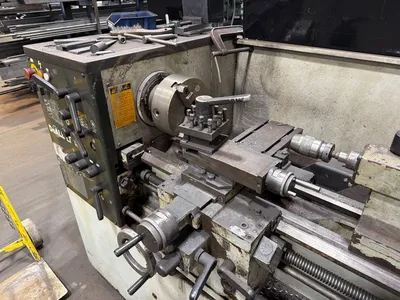

DOALL LT13 PRECISION ENGINE LATHE

Description

DOALL LT13 PRECISION ENGINE LATHE

Manufacturer: DoAll
Model: LT13

POWER: 220 / 440 V, 3 Ph

Specs:

General
Machine Type: Precision Engine Lathe

Capacity
Swing Over Bed: 13 in
Distance Between Centers: approx. 40 in

Spindle
Spindle Speed: Up to 2,500 RPM
Spindle Nose: D1-6
Spindle Bore: approx. 1-3/8 in

Threading
English Threads: 4 – 72 TPI
Metric Threads: 0.2 – 7 mm

Feed Rates
Longitudinal Feed Range: .0017 – .0287 IPR
Cross Feed Range: .0008 – .0130 IPR

Tailstock
Tailstock Taper: MT3
Quill Travel: approx. 4-3/4 in

Construction
Bed Width: 8-7/8 in (hardened)

Electrical
Voltage: 220 / 440 V
Phase: 3 Ph
