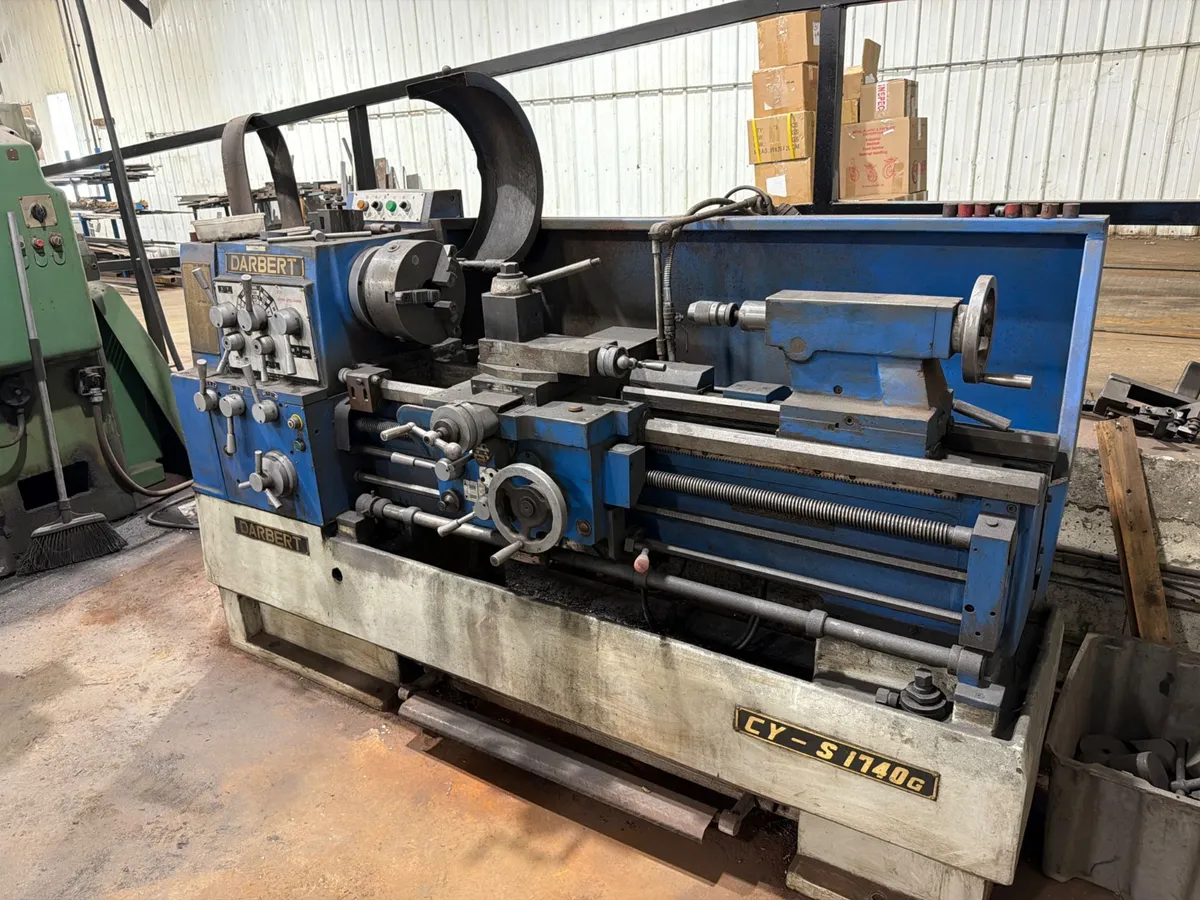

DARBERT CY-S1740G GAP-BED ENGINE LATHE

Description

DARBERT CY-S1740G GAP-BED ENGINE LATHE

Manufacturer: Darbert
Model: CY-S1740G

POWER: —

Specs:

General
Machine Type: Gap-Bed Engine Lathe
Construction: Cast Iron Headstock, Gearbox, Apron, and Bed
Bed Type: Induction-Hardened Bedways
Base: Mono-Block Bed Base

Capacity
Swing Over Bed: 16.7 in
Swing Over Cross Slide: 9.4 in
Swing in Gap: 25.6 in
Distance Between Centers: 39.4 in

Spindle
Spindle Nose: D6
Spindle Bore: 2.24 in
Spindle Taper: MT6
Spindle Speeds: 20 – 2000 RPM (12 Steps)

Threading
Inch Threads: 2 – 56 TPI
Metric Threads: 0.02 – 0.55 mm

Feed Rates
Longitudinal Feed: 0.0024 – 0.0323 in/rev
Cross Feed: 0.0008 – 0.0114 in/rev

Tailstock
Tailstock Taper: MT4
Quill Travel: 5.0 in

Drive System
Main Motor: 7.5 HP
Coolant Pump: Yes

Features
Lead Screw: Yes
Foot Brake: Yes
Longitudinal Automatic Stop: Yes
Lubrication: Manual Pump
