2022 A&D AD-4961-2KD-2035 CHECKWEIGHER
Have one to sell?
ConditionUsed
1 available
2022 A&D AD-4961-2KD-2035 CHECKWEIGHER
Manufacturer: A&D
Model: AD-4961-2KD-2035
Mfg Date: 2022
POWER: 100-240 V, 50/60 Hz, Single Phase, 180 VA
Specs:
In-Motion Checkweigher
Capacity: 500 g / 2,000 g Dual Range
Resolution: 0.01 g / 0.1 g
Accuracy: ±0.08 g / ±0.18 g
Throughput: Up to 320 pcs/min
Conveyor Size: 7.8 in W x 13.7 in L
Max Product Size: 11.8 in L x 7.8 in W
Belt Speed: 49 - 393 ft/min
Food Grade Urethane Belt
Strain Gauge Load Cell

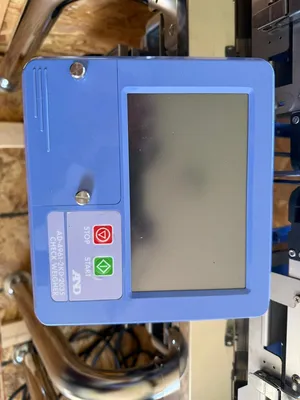

7 in Color Touchscreen HMI
Memory Capacity: 1,000 Programs
Communication: Modbus TCP/RTU, RS-232, RS-485, TCP/IP, USB
4 Inputs / 8 Relay Outputs
IP65 Rated
Operating Temp: 23°F - 104°F
Stainless Steel Construction
Integrated Rejector & Alarm Functions
Applications: Food, Beverage, Pharmaceutical, Packaging
Included Rejector:
Model: AD-4981-2057 Flipper Rejector
Rejector Type: Pneumatic Flipper Rejector
Reject Conveyor Width: 7.8 in (200 mm)
Reject Conveyor Length: 22.4 in (570 mm)
Reject Throughput: Up to 120 pcs/min
Air Supply Requirement: 0.5 MPa, 0.2 NL/time
Weight: 100 lbs
Machine Dimensions: 5' x 3' x 4'
2022 A&D AD-4961-2KD-2035 CHECKWEIGHER
Manufacturer: A&D
Model: AD-4961-2KD-2035
Mfg Date: 2022
POWER: 100-240 V, 50/60 Hz, Single Phase, 180 VA
Specs:
In-Motion Checkweigher
Capacity: 500 g / 2,000 g Dual Range
Resolution: 0.01 g / 0.1 g
Accuracy: ±0.08 g / ±0.18 g
Throughput: Up to 320 pcs/min
Conveyor Size: 7.8 in W x 13.7 in L
Max Product Size: 11.8 in L x 7.8 in W
Belt Speed: 49 - 393 ft/min
Food Grade Urethane Belt
Strain Gauge Load Cell
7 in Color Touchscreen HMI
Memory Capacity: 1,000 Programs
Communication: Modbus TCP/RTU, RS-232, RS-485, TCP/IP, USB
4 Inputs / 8 Relay Outputs
IP65 Rated
Operating Temp: 23°F - 104°F
Stainless Steel Construction
Integrated Rejector & Alarm Functions
Applications: Food, Beverage, Pharmaceutical, Packaging
Included Rejector:
Model: AD-4981-2057 Flipper Rejector
Rejector Type: Pneumatic Flipper Rejector
Reject Conveyor Width: 7.8 in (200 mm)
Reject Conveyor Length: 22.4 in (570 mm)
Reject Throughput: Up to 120 pcs/min
Air Supply Requirement: 0.5 MPa, 0.2 NL/time
Weight: 100 lbs
Machine Dimensions: 5' x 3' x 4'
