Used 2023 BODOR P3-00-CU | FIBER LASER CUTTER

Description

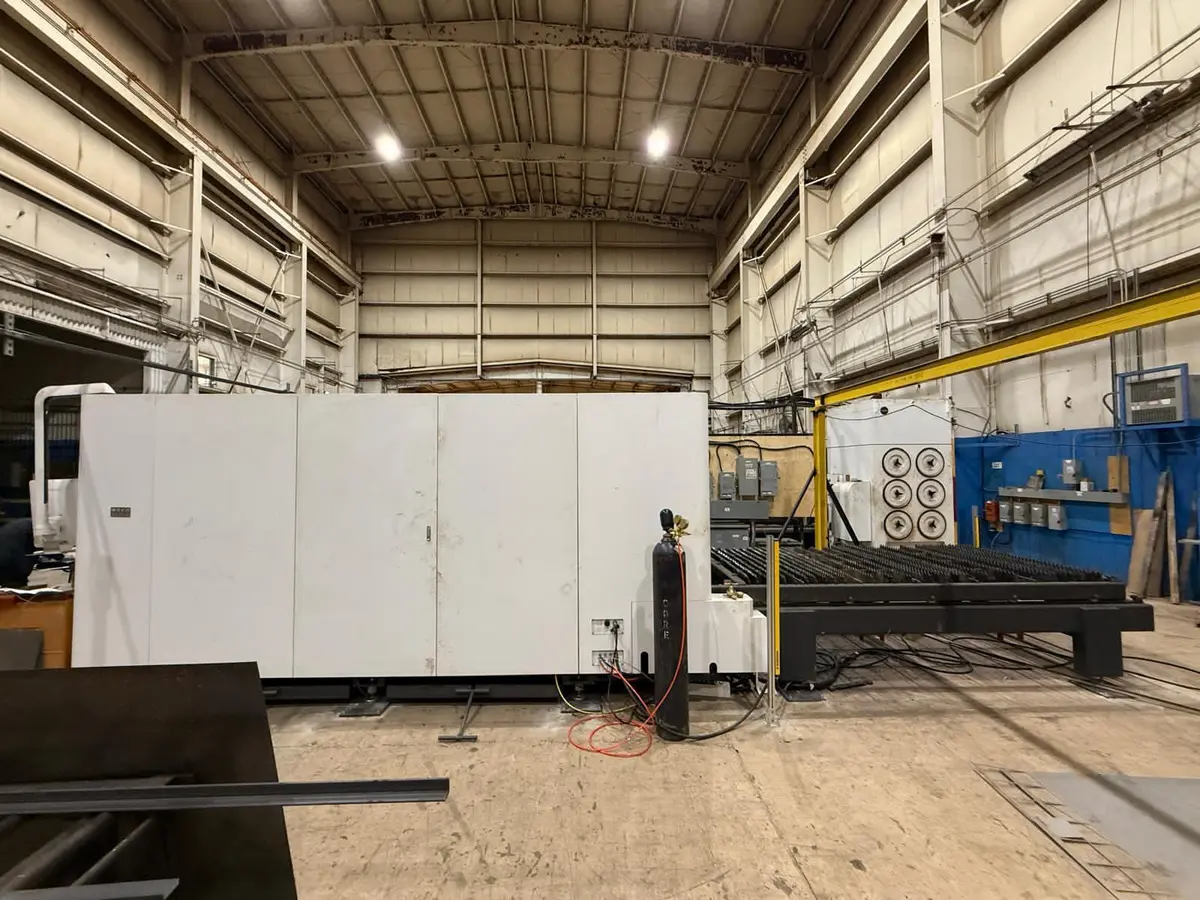

2023 Bodor P3-00-CU CNC Fiber Laser Cutting System

Manufacturer: Bodor
Model: P3-00-CU
Mfg Date: 2023

Power: 380V 60Hz 3PH

Specs:
Machine Type: CNC Fiber Laser Cutting System
Laser Source: Fiber Laser Resonator
Laser Power: 12 kW

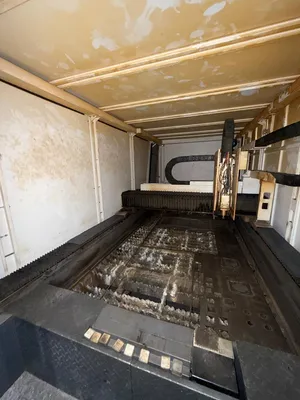

Working Area: 120 in x 60 in

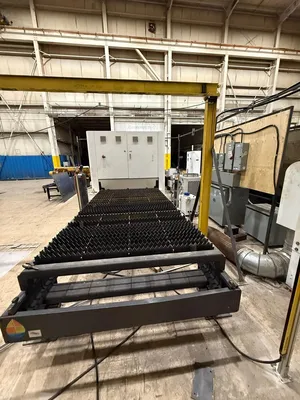

Table Type: Dual Shuttle Exchange Table

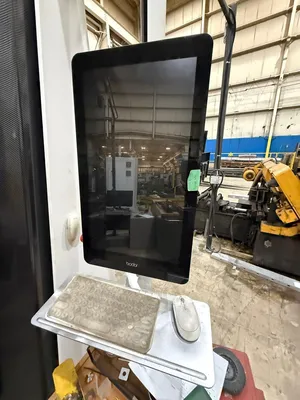

Control System: Bodor Thinker CNC Control
Drive System: Servo Driven Gantry
Positioning Accuracy: ±0.05 mm/m
Repeat Positioning Accuracy: ±0.02 mm
Maximum Linkage Speed: 200 m/min
Maximum Acceleration: 4G
Automatic Focus Cutting Head: Yes
Automatic Nozzle Changer: Yes
Collision Avoidance System: Yes

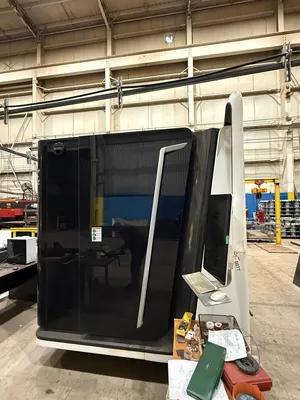

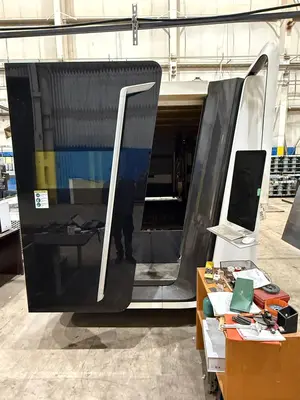

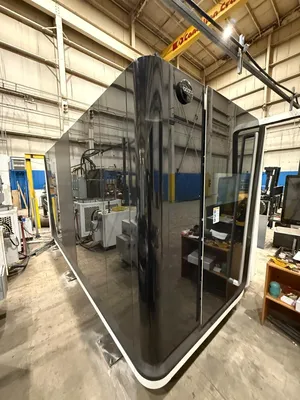

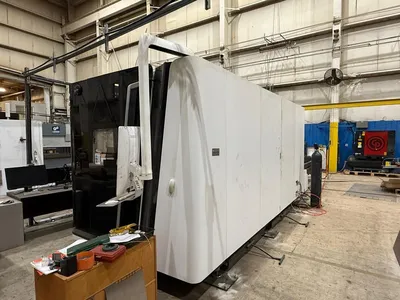

Protective Enclosure: Full Enclosure
Automatic Edge Finding: Yes
Remnant Nesting Capability: Yes
Automatic Lubrication System: Yes
Integrated Water Chiller: Included

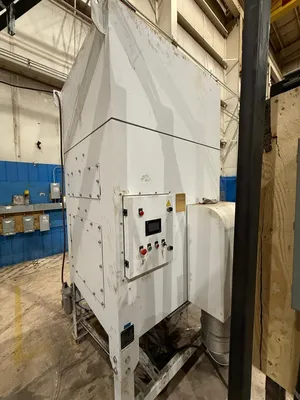

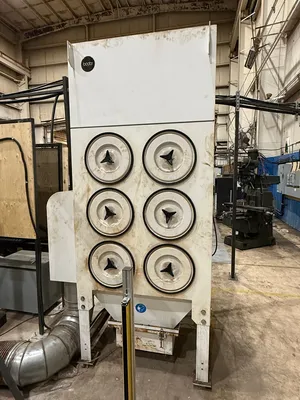

Fume Extraction System: Included

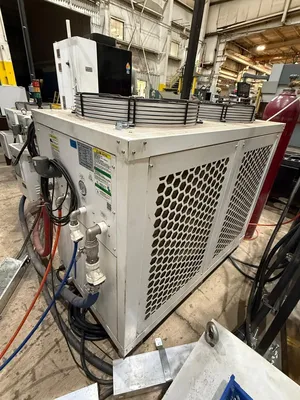

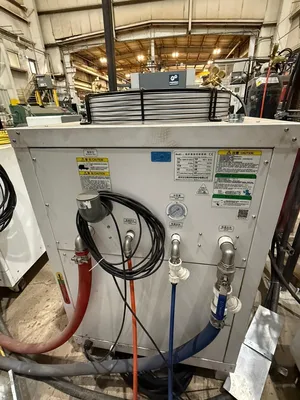

Cooling System: HanLi Fiber Laser Cooling System
Chiller Model: HL-12000-EH-QG2/2
Chiller Power: 20 kW
Chiller Refrigerant: R410A
Machine Voltage: 380V
Machine Frequency: 60 Hz
Software: Bodor Thinker with Nesting Functions

Includes: Bodor Cooling System, Fume Extractor

Weight: Approx. 30,000 lb
Dimensions: Approx. 360 x 100 x 120 in
