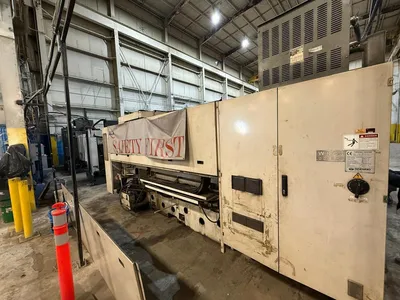

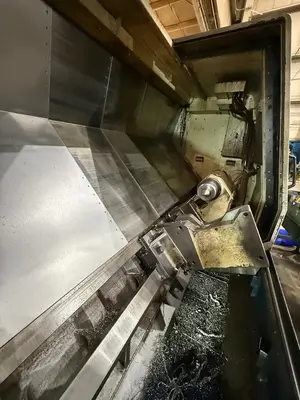

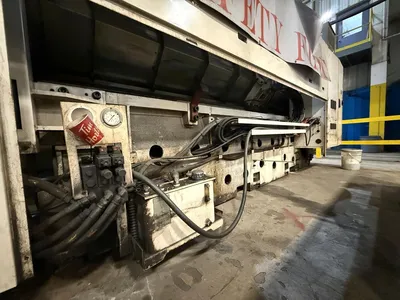

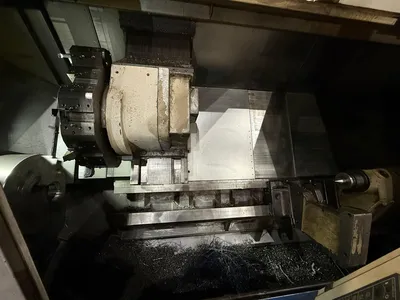

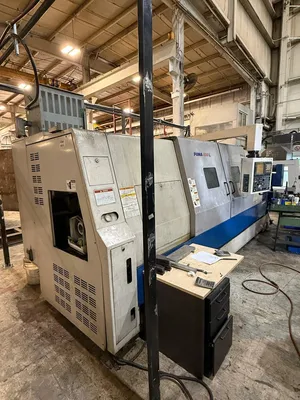

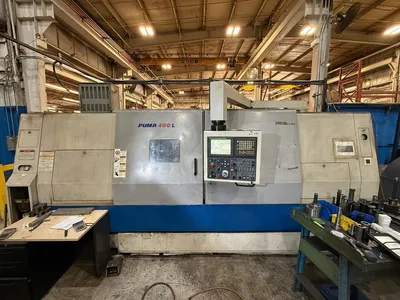

2010 Doosan Puma 400LB CNC Lathe
Have one to sell?
ConditionUsed
1 available

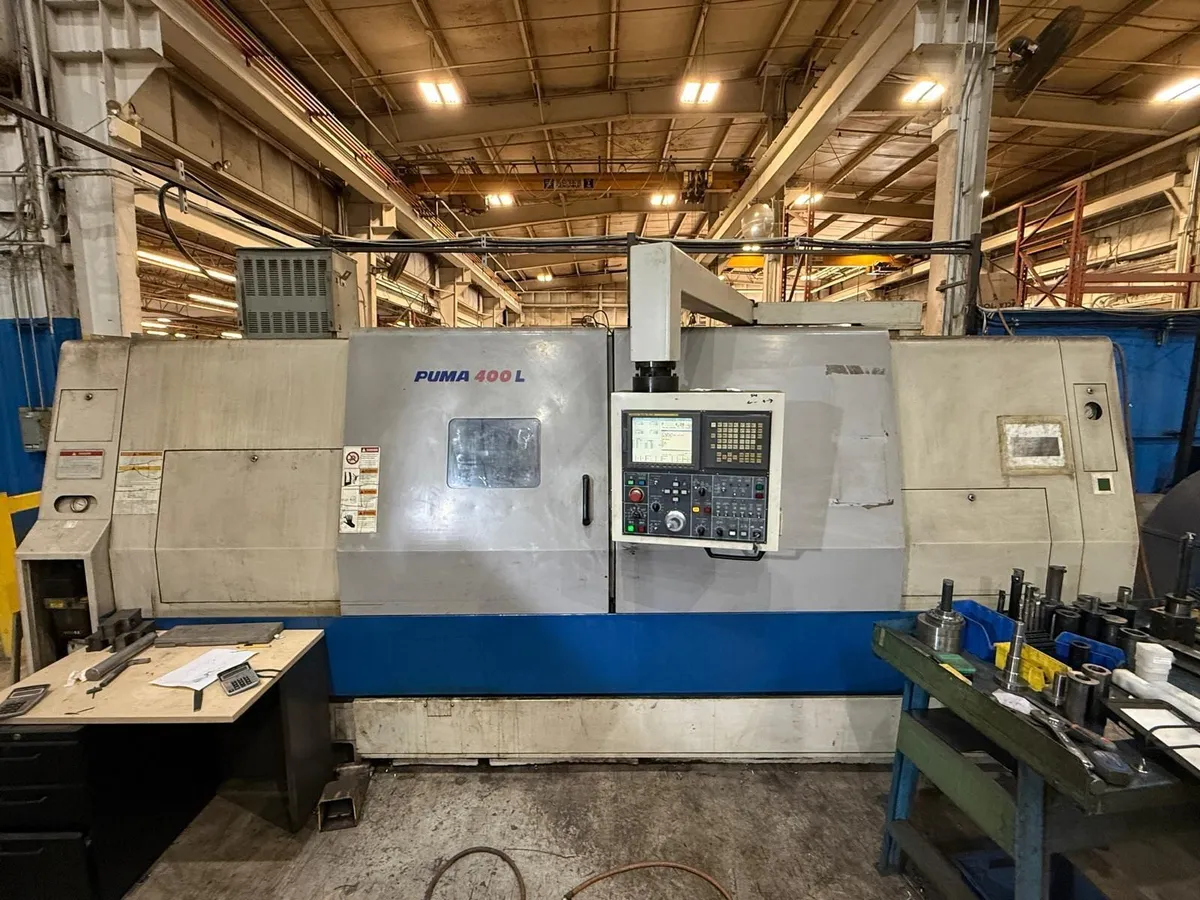

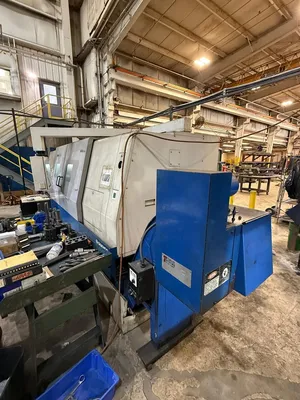

2010 Doosan Puma 400LB CNC Lathe
Manufacturer: Doosan
Model: Puma 400LB
Mfg Date: 2010
Power: 220v 50/60hz 3ph
Specs:
Machine Type: CNC Turning Center / CNC Lathe
Swing Over Bed: 30.3 in
Swing Over Saddle: 23.2 in
Maximum Turning Diameter: 21.7 in
Maximum Turning Length: 41 in – 44 in
X-Axis Travel: 14.3 in
Z-Axis Travel: 43.5 in
Spindle Nose: A2-11
Spindle Bore: 5.2 in
Bar Capacity: 4.6 in
Maximum Spindle Speed: 2,000 RPM

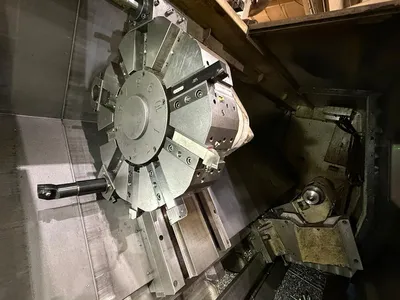

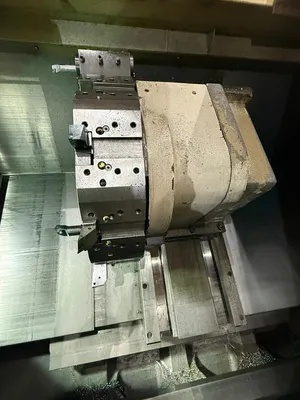

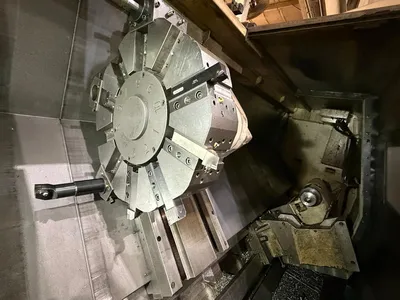

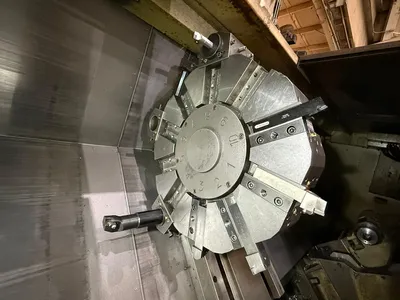

Turret Capacity: 10 Station
Rapid Traverse Rates:
X-Axis: 630 IPM
Z-Axis: 790 IPM
Tailstock: Programmable Tailstock
Chuck Size: 15 in
Weight: 22,000 lb
Dimensions: 250 x 100 x 100in
2010 Doosan Puma 400LB CNC Lathe
Manufacturer: Doosan
Model: Puma 400LB
Mfg Date: 2010
Power: 220v 50/60hz 3ph
Specs:
Machine Type: CNC Turning Center / CNC Lathe
Swing Over Bed: 30.3 in
Swing Over Saddle: 23.2 in
Maximum Turning Diameter: 21.7 in
Maximum Turning Length: 41 in – 44 in
X-Axis Travel: 14.3 in
Z-Axis Travel: 43.5 in
Spindle Nose: A2-11
Spindle Bore: 5.2 in
Bar Capacity: 4.6 in
Maximum Spindle Speed: 2,000 RPM
Turret Capacity: 10 Station
Rapid Traverse Rates:
X-Axis: 630 IPM
Z-Axis: 790 IPM
Tailstock: Programmable Tailstock
Chuck Size: 15 in
Weight: 22,000 lb
Dimensions: 250 x 100 x 100in
