2023 BODOR i7 3KW CNC FIBER LASER CUTTING SYSTEM
Have one to sell?
ConditionUsed
1 available

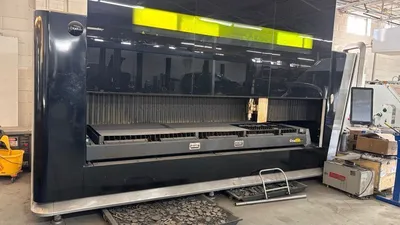

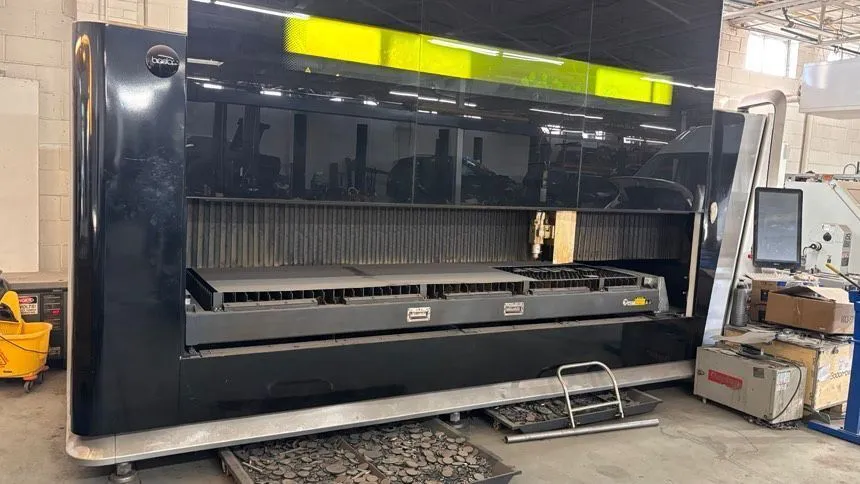

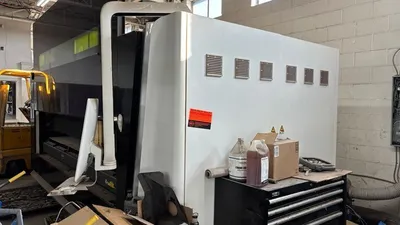

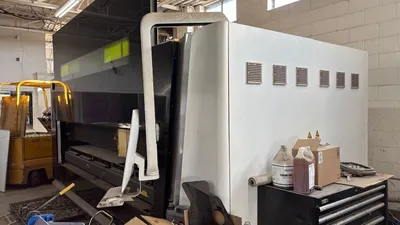

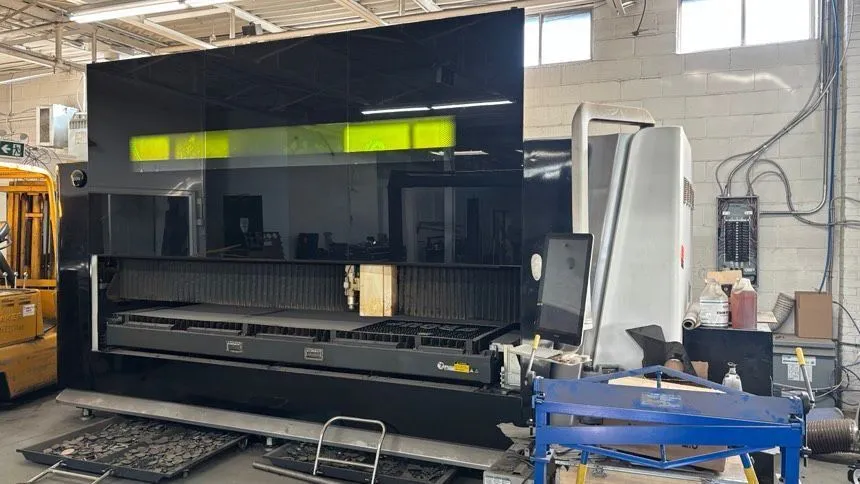

2023 BODOR i7 3KW CNC FIBER LASER CUTTING SYSTEM
Manufacturer: Bodor
Model: i7
Mfg Date: 2023
POWER: 380V / 60Hz / 3PH
Laser Source: BodorPower Fiber Resonator
Laser Power: 3 kW
Bed Size: 120 in x 60 in (5' x 10')
Maximum Linkage Speed: 91 m/min
Maximum Acceleration: 1.5 G
Positioning Accuracy: ±0.05 mm/m
Repeat Positioning Accuracy: ±0.03 mm
Control: Bodor Thinker CNC Control
Cutting Head: Bodor Genius Auto Focus Head
Electrical Load: 40.88 kW
Full Load Current: 77.7 A
SCCR: 6 kA
INCLUDED
HANLI HL-3000-EH-QG2/2 CHILLER
220V / 60Hz
5.0 kW
R32 Refrigerant
4 m³/hr Flow Rate

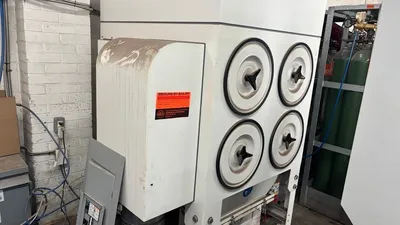

TODC-4B DUST COLLECTOR
5.5 kW Motor
10.9 A
380V / 60Hz / 3PH
Weight: 10,500 - 11,500 lb
Machine Dimensions: 195 in x 91 in x 87 in
2023 BODOR i7 3KW CNC FIBER LASER CUTTING SYSTEM
Manufacturer: Bodor
Model: i7
Mfg Date: 2023
POWER: 380V / 60Hz / 3PH
Laser Source: BodorPower Fiber Resonator
Laser Power: 3 kW
Working Area: 120 in x 60 in
X-Axis Travel: 120 in
Y-Axis Travel: 60 in
Z-Axis Travel: 4.7 in
Maximum Linkage Speed: 91 m/min
Maximum Acceleration: 1.5 G
Positioning Accuracy: ±0.05 mm/m
Repeat Positioning Accuracy: ±0.03 mm
Control: Bodor Thinker CNC Control
Cutting Head: Bodor Genius Auto Focus Head
Electrical Load: 40.88 kW
Full Load Current: 77.7 A
SCCR: 6 kA
INCLUDED
HANLI HL-3000-EH-QG2/2 CHILLER
220V / 60Hz
5.0 kW
R32 Refrigerant
4 m³/hr Flow Rate
TODC-4B DUST COLLECTOR
5.5 kW Motor
10.9 A
380V / 60Hz / 3PH
Weight: 10,500 - 11,500 lb
Machine Dimensions: 195 in x 91 in x 87 in
