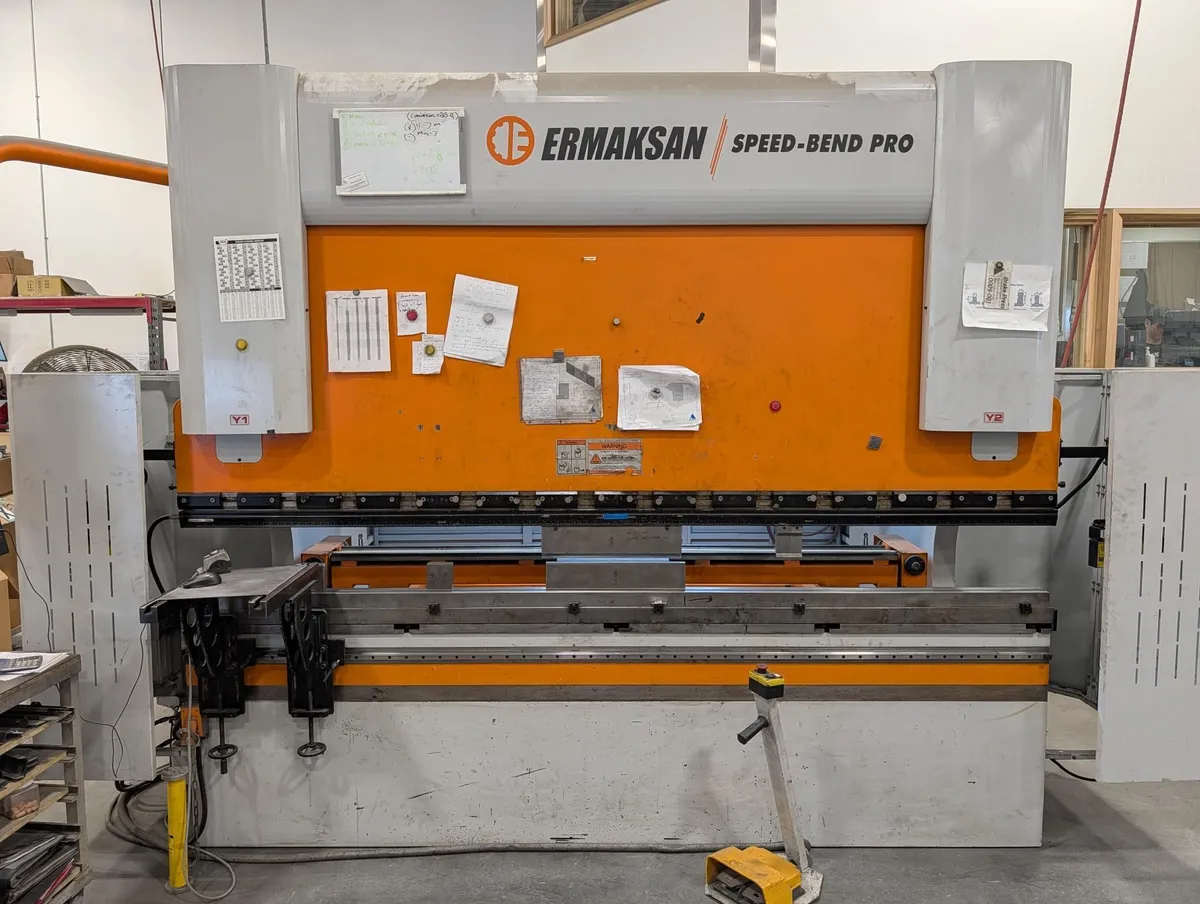

2015 ERMAKSAN SPEED-BEND PRO 10' x 149 TON CNC PRESS BRAKE
Have one to sell?
ConditionUsed
1 available
"2015 ERMAKSAN SPEED-BEND PRO 10' x 149 TON CNC PRESS BRAKE
Manufacturer: Ermaksan
Model: Speed-Bend Pro 10x149
Year: 2015
Voltage: 575 V
Capacity: 149 US Tons
Bending Length: 120 in
Distance Between Housings: 102.4 in
Throat Depth: 16.1 in
Stroke: 10.8 in
Open Height (Daylight): 20.9 in
Approach Speed: 7.8 in/sec

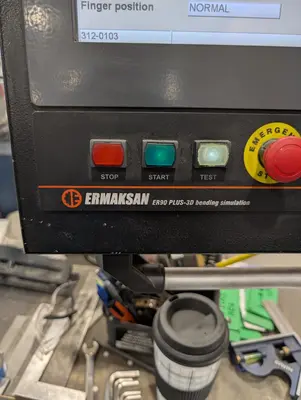

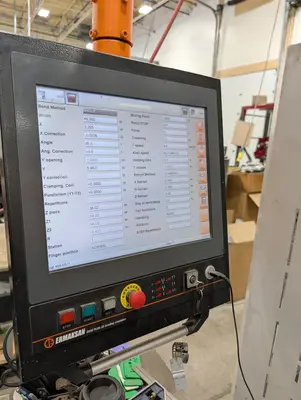

Controller: ER90 Plus 3D CNC Control
Axes: Y1, Y2, X, R, Z1, Z2
Backgauge Type: CNC Programmable
X-Axis Travel: 31.5 in
R-Axis Travel: 9.8 in

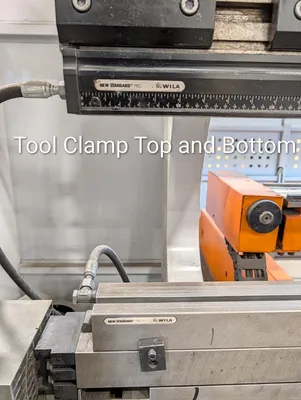

Clamping: WILA New Standard Pro Hydraulic Top & Bottom Clamping
Crowning: CNC Motorized Crowning
Weight: 17,419 lb
Overall Dimensions: 168 x 90 x 110in
2015 ERMAKSAN SPEED-BEND PRO 10' x 149 TON CNC PRESS BRAKE
Manufacturer: Ermaksan
Model: Speed-Bend Pro 10x149
Year: 2015
Voltage: 575 V
Capacity: 149 US Tons
Bending Length: 120 in
Distance Between Housings: 102.4 in
Throat Depth: 16.1 in
Stroke: 10.8 in
Open Height (Daylight): 20.9 in
Approach Speed: 7.8 in/sec
Controller: ER90 Plus 3D CNC Control
Axes: Y1, Y2, X, R, Z1, Z2
Backgauge Type: CNC Programmable
X-Axis Travel: 31.5 in
R-Axis Travel: 9.8 in
Clamping: WILA New Standard Pro Hydraulic Top & Bottom Clamping
Crowning: CNC Motorized Crowning
Weight: 17,419 lb
Overall Dimensions: 168 x 90 x 110in
