2023 GORBEL DUAL BRIDGECRANE SYSTEM 20' x 80' (2) 2-TON HOISTS

Description

2023 GORBEL DUAL BRIDGECRANE SYSTEM 20' x 80' (2) 2-TON HOISTS

Manufacturer: Gorbel
Model: GLCS-FS-4000-20-80-14
Mfg Date: 2023

Specs:

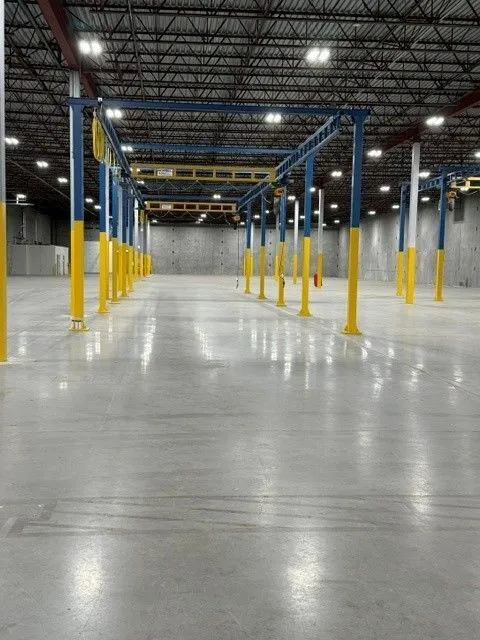

Crane Type: Freestanding Workstation Bridge Crane System
Capacity: 4,000 lb per bridge
Number of Bridges: 2
Number of Hoists: 2 × 2 Ton Hoists (2-speed)
Bridge Span: 20 ft
Runway Length: 80 ft
Bridge Series: 4000
Runway Series: 4000
Quantity: 1 Complete System
Overall Runway Length: 80 ft
Bridge Trolley Travel: 18 ft 6-11/16 in
End Truck Travel: 65 ft 7-1/2 in
Under Beam Clearance: 14 ft
Support Columns: Freestanding Steel Construction
Column Spacing: 20 ft Centers
Mounting: Floor Anchored
Design Standard: AISC Specifications
Tolerance: ±1/8 in

Hoists

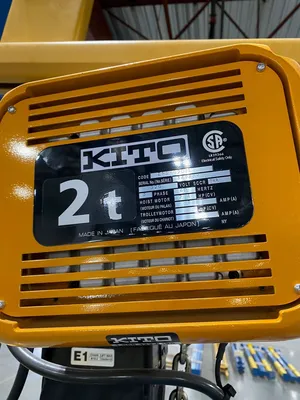

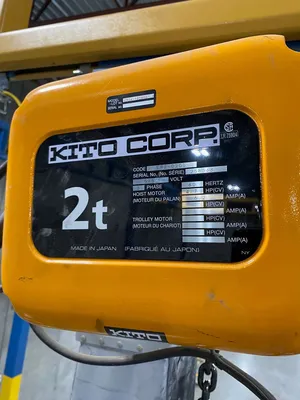

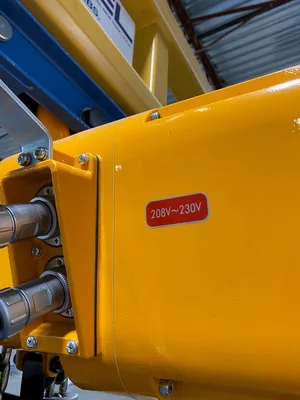

KITO ER2-020IS Electric Chain Hoist
Capacity: 2 Ton (4,000 lb)
Power: 208-230V 60Hz 3Ph
Hoist Motor Power: 1.8 kW (2.4 HP)
Motor Speed: 1650 RPM

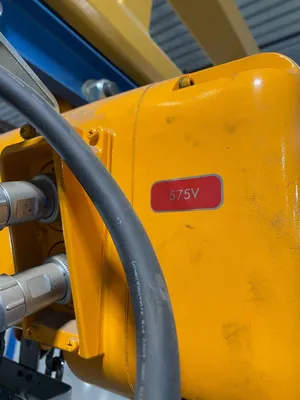

KITO ER2-020S Electric Chain Hoist
Capacity: 2 Ton (4,000 lb)
Power: 575V 60Hz 3Ph
Hoist Motor Power: 3.5 kW (4.7 HP)
Motor Speed: 1680 RPM

Included:
(2) Gorbel 4,000 lb Bridge Cranes
(2) Kito 2-Ton Electric Hoists
Complete 80 ft Runway System
Freestanding Support Structure
End Trucks & Trolleys
Electrical Festoon System
