2023 GORBEL DUAL BRIDGECRANE SYSTEM 30' x 80' (2) 2-TON HOISTS

Description

2023 GORBEL DUAL BRIDGECRANE SYSTEM 30' x 80' (2) 2-TON HOISTS

Manufacturer: Gorbel
Model: GLCS-FS-4000-30-80-17.5
Mfg Date: 2023

Specs:

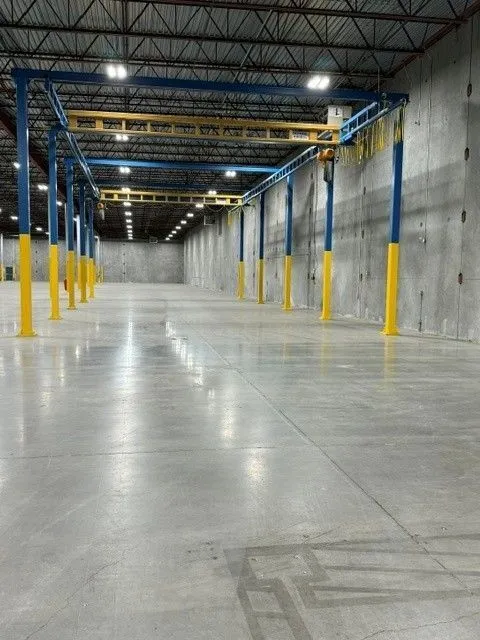

Crane Type: Freestanding Workstation Bridge Crane System
Capacity: 4,000 lb per bridge
Number of Bridges: 2
Number of Hoists: 2 × 2 Ton Hoists (2-speed)
Bridge Span: 30 ft
Runway Length: 80 ft
Bridge Series: 4000
Runway Series: 4000
Bridge Trolley Travel: 28 ft 8-5/16 in
End Truck Travel: 65 ft 7-1/2 in
Support Structure: Freestanding Steel
Overall System Width: 32 ft 7-1/2 in
Runway Width: 31 ft
Tolerance: ±1/8 in
Design Standard: AISC Specifications
Quantity: 1 Complete System

Hoists

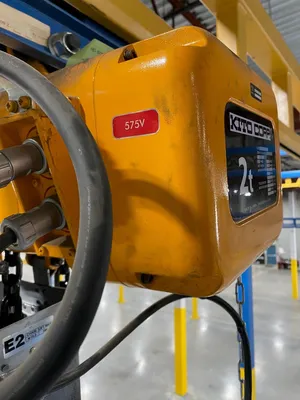

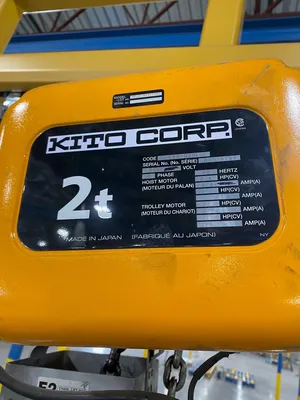

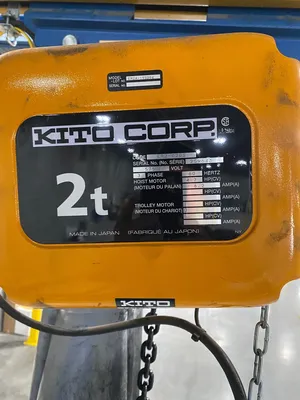

KITO ER2-020S Electric Chain Hoist (x2)
Capacity: 2 Ton (4,000 lb)
Power: 575V 60Hz 3Ph
Hoist Motor Power: 3.5 kW (4.7 HP)
Motor Speed: 1680 RPM

Included:
(2) Gorbel 4,000 lb Bridge Cranes
(2) Kito Electric Hoists
Complete 80 ft Runway System
Freestanding Support Structure
End Trucks & Bridge Trolleys
Electrical Festoon System
