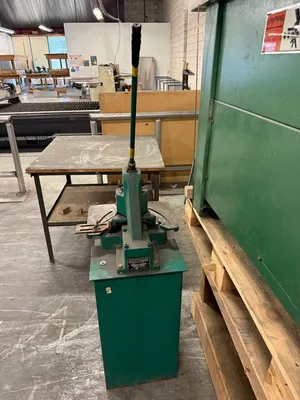

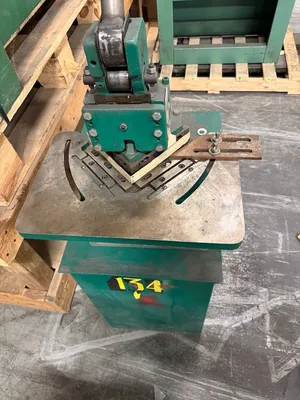

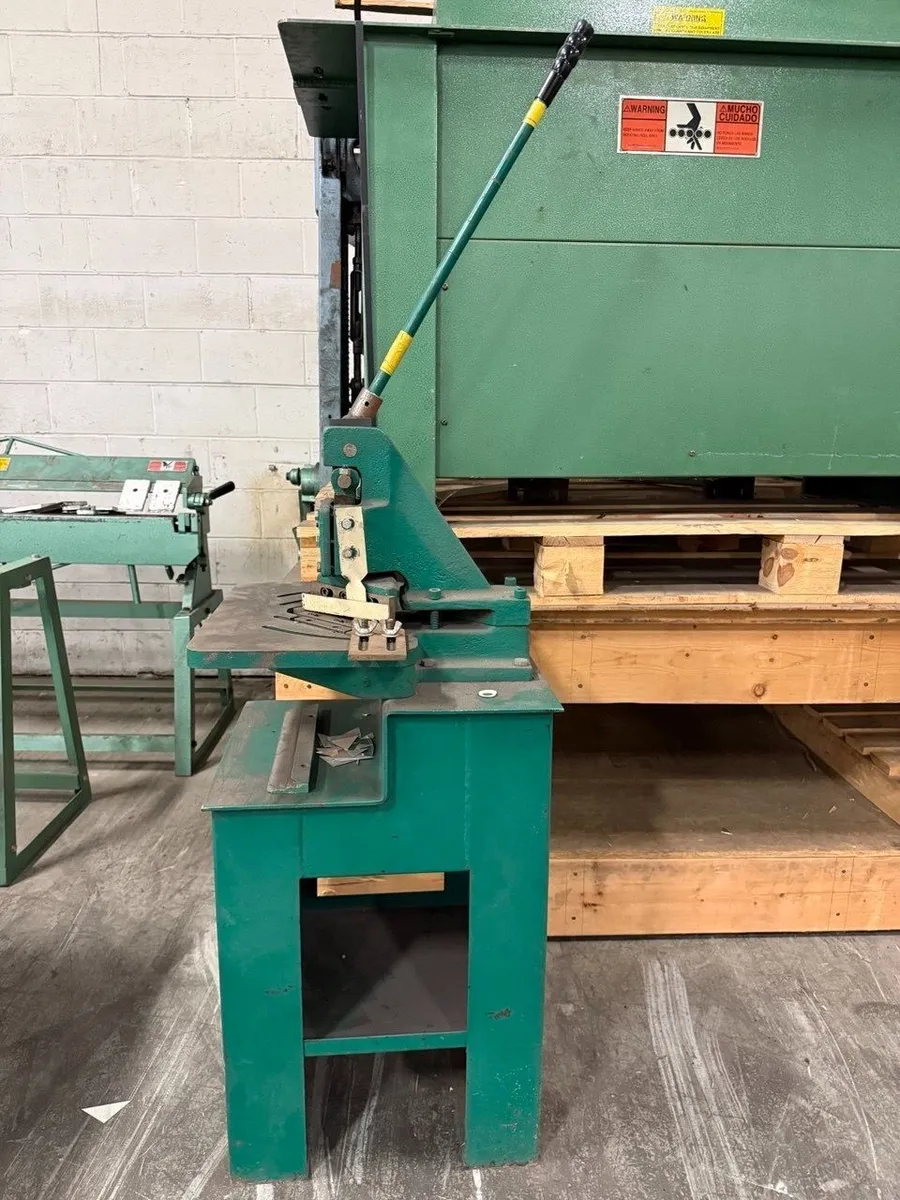

Tennsmith 16-Gauge Manual Notcher
Have one to sell?
ConditionUsed
1 available
Tennsmith 16-Gauge Manual Notcher
MANUFACTURER: Tennsmith
MODEL: 16-18
Specs
Machine type: Manual sheet metal corner notcher
Maximum notching capacity: 16 gauge mild steel
Maximum piercing capacity: 18 gauge mild steel
Maximum notch size: 6 in × 6 in
Notch angle: 90°
Side shear capacity: 6 in wide material at rated capacity
Operation: Manual lever-operated
Upper blades: Reversible
Piercing capability: Limited throat piercing / knockout operation
Work table: Ground work table with inlaid scales
MACHINE WEIGHT: 170 lb
MACHINE DIMENSIONS: 19 in × 18 in × 15 in
Tennsmith 16-Gauge Manual Notcher
MANUFACTURER: Tennsmith
MODEL: 16-18
Specs
Machine type: Manual sheet metal corner notcher
Maximum notching capacity: 16 gauge mild steel
Maximum piercing capacity: 18 gauge mild steel
Maximum notch size: 6 in × 6 in
Notch angle: 90°
Side shear capacity: 6 in wide material at rated capacity
Operation: Manual lever-operated
Upper blades: Reversible
Piercing capability: Limited throat piercing / knockout operation
Work table: Ground work table with inlaid scales
MACHINE WEIGHT: 170 lb
MACHINE DIMENSIONS: 19 in × 18 in × 15 in
Tennsmith 16-Gauge Manual Notcher
MANUFACTURER: Tennsmith
MODEL: 16-18
Specs
Machine type: Manual sheet metal corner notcher
Maximum notching capacity: 16 gauge mild steel
Maximum piercing capacity: 18 gauge mild steel
Maximum notch size: 6 in × 6 in
Notch angle: 90°
Side shear capacity: 6 in wide material at rated capacity
Operation: Manual lever-operated
Upper blades: Reversible
Piercing capability: Limited throat piercing / knockout operation
Work table: Ground work table with inlaid scales
MACHINE WEIGHT: 170 lb
MACHINE DIMENSIONS: 19 in × 18 in × 15 in
Imperial
| Max Thickness | 0.0478" |
| Max Thickness (gauge) | 18 gauge |
| Stock Dimension (X) | 6" |
| Stock Dimension (Y) | 6" |
Tennsmith 16-Gauge Manual Notcher
MANUFACTURER: Tennsmith
MODEL: 16-18
Specs
Machine type: Manual sheet metal corner notcher
Maximum notching capacity: 16 gauge mild steel
Maximum piercing capacity: 18 gauge mild steel
Maximum notch size: 6 in × 6 in
Notch angle: 90°
Side shear capacity: 6 in wide material at rated capacity
Operation: Manual lever-operated
Upper blades: Reversible
Piercing capability: Limited throat piercing / knockout operation
Work table: Ground work table with inlaid scales
MACHINE WEIGHT: 170 lb
MACHINE DIMENSIONS: 19 in × 18 in × 15 in
