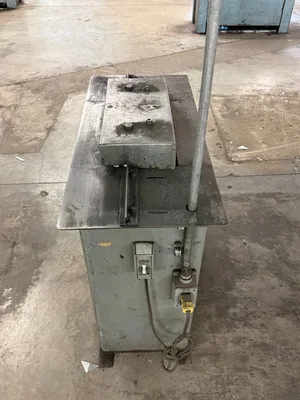

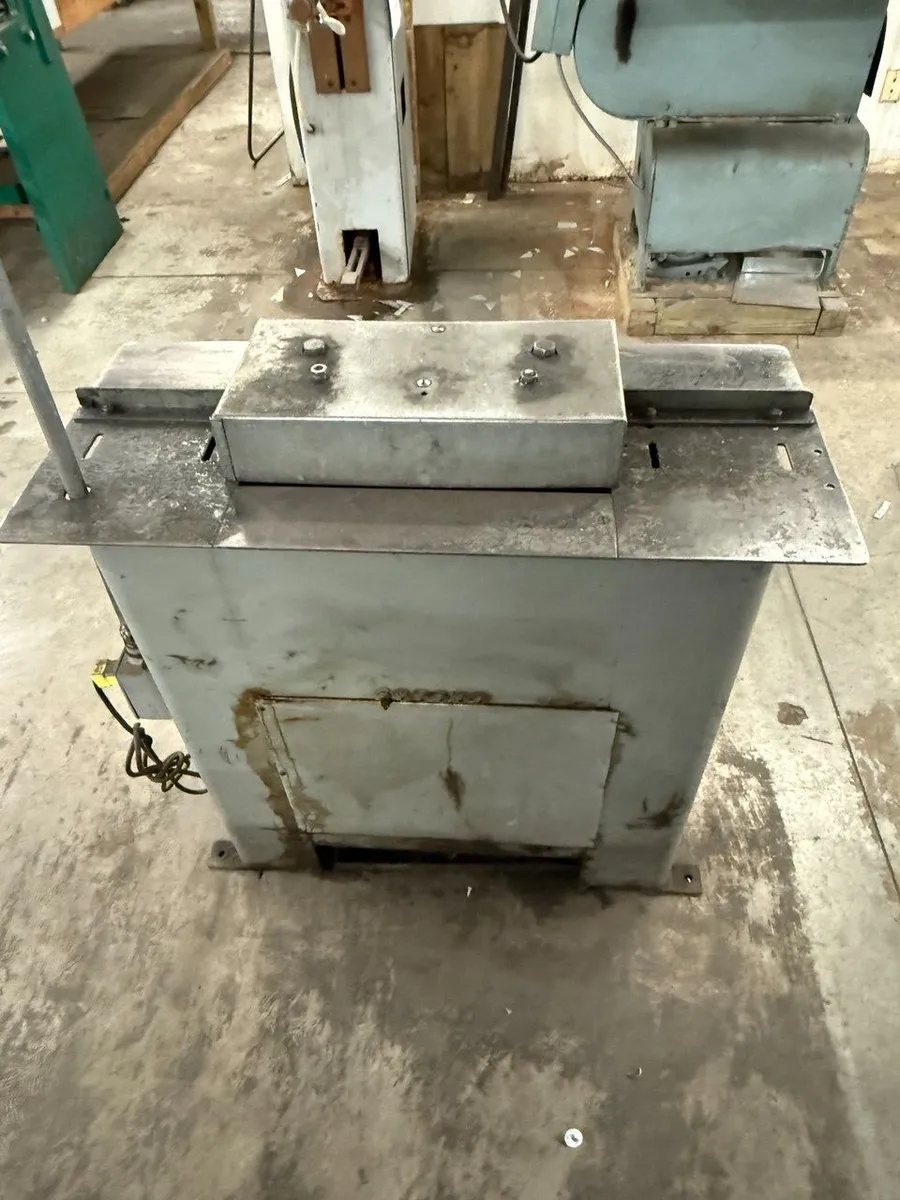

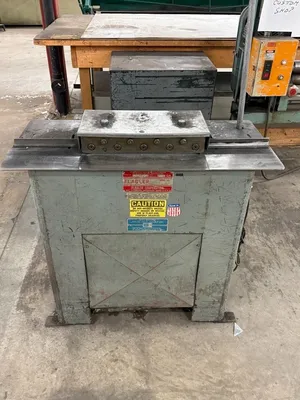

Flagler Model 20 Sheet Metal Forming Machine
Have one to sell?
ConditionUsed
1 available
Flagler Model 20 Sheet Metal Forming Machine
MAKE: Flagler Corporation
MODEL: 20
TYPE: Pittsburgh Roll Former / Sheet Metal Forming Machine
Power: 115/208–230 V, 60 Hz, 1 Ph
CAPACITY: 20-gauge mild steel
FORMING RANGE: Approx. 20–26 gauge mild steel
NUMBER OF FORMING STATIONS: 5
PITTSBURGH POCKET DEPTH: Approx. 5/16 in
FORMING SPEED: Approx. 23 FPM
DRIVE: V-belt drive
POWER: 3/4 HP
CONSTRUCTION: Floor-mounted steel cabinet base
TOOLING: Built-in Pittsburgh lock forming rolls
MATERIAL USAGE: Approx. 1 in material required for Pittsburgh lock
WEIGHT: 400 lb
DIMENSIONS: 36 in × 18 in × 42 in
Flagler Model 20 Sheet Metal Forming Machine
MAKE: Flagler Corporation
MODEL: 20
TYPE: Pittsburgh Roll Former / Sheet Metal Forming Machine
Power: 115/208–230 V, 60 Hz, 1 Ph
CAPACITY: 20-gauge mild steel
FORMING RANGE: Approx. 20–26 gauge mild steel
NUMBER OF FORMING STATIONS: 5
PITTSBURGH POCKET DEPTH: Approx. 5/16 in
FORMING SPEED: Approx. 23 FPM
DRIVE: V-belt drive
POWER: 3/4 HP
CONSTRUCTION: Floor-mounted steel cabinet base
TOOLING: Built-in Pittsburgh lock forming rolls
MATERIAL USAGE: Approx. 1 in material required for Pittsburgh lock
WEIGHT: 400 lb
DIMENSIONS: 36 in × 18 in × 42 in
Flagler Model 20 Sheet Metal Forming Machine
MAKE: Flagler Corporation
MODEL: 20
TYPE: Pittsburgh Roll Former / Sheet Metal Forming Machine
Power: 115/208–230 V, 60 Hz, 1 Ph
CAPACITY: 20-gauge mild steel
FORMING RANGE: Approx. 20–26 gauge mild steel
NUMBER OF FORMING STATIONS: 5
PITTSBURGH POCKET DEPTH: Approx. 5/16 in
FORMING SPEED: Approx. 23 FPM
DRIVE: V-belt drive
POWER: 3/4 HP
CONSTRUCTION: Floor-mounted steel cabinet base
TOOLING: Built-in Pittsburgh lock forming rolls
MATERIAL USAGE: Approx. 1 in material required for Pittsburgh lock
WEIGHT: 400 lb
DIMENSIONS: 36 in × 18 in × 42 in
Imperial
| Number of Stands | 5 |
| Power | 0.8 hp |
| Dimensions | 36 in × 18 in × 42 in |
| Weight | 400 lb |
Flagler Model 20 Sheet Metal Forming Machine
MAKE: Flagler Corporation
MODEL: 20
TYPE: Pittsburgh Roll Former / Sheet Metal Forming Machine
Power: 115/208–230 V, 60 Hz, 1 Ph
CAPACITY: 20-gauge mild steel
FORMING RANGE: Approx. 20–26 gauge mild steel
NUMBER OF FORMING STATIONS: 5
PITTSBURGH POCKET DEPTH: Approx. 5/16 in
FORMING SPEED: Approx. 23 FPM
DRIVE: V-belt drive
POWER: 3/4 HP
CONSTRUCTION: Floor-mounted steel cabinet base
TOOLING: Built-in Pittsburgh lock forming rolls
MATERIAL USAGE: Approx. 1 in material required for Pittsburgh lock
WEIGHT: 400 lb
DIMENSIONS: 36 in × 18 in × 42 in
