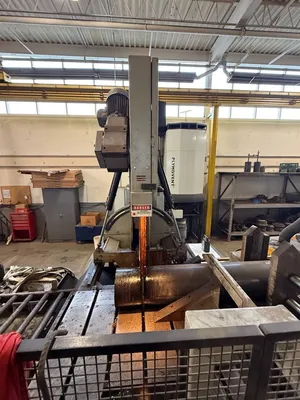

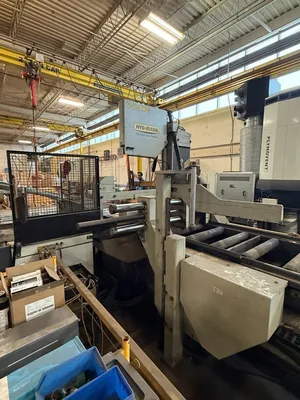

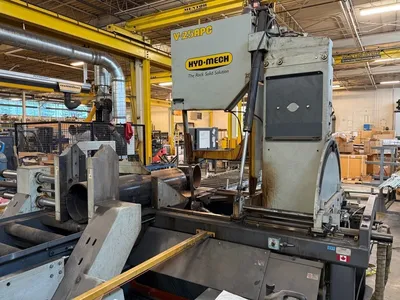

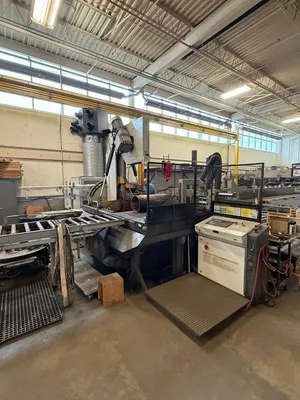

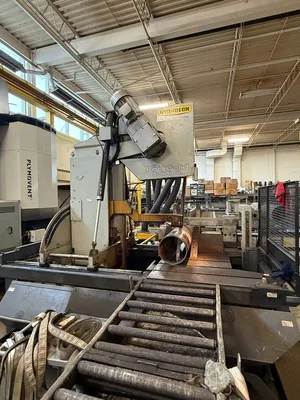

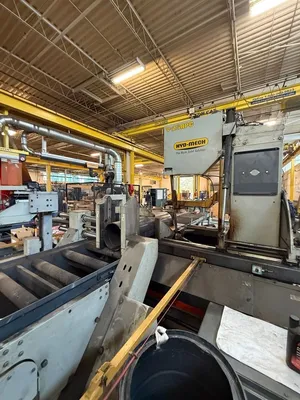

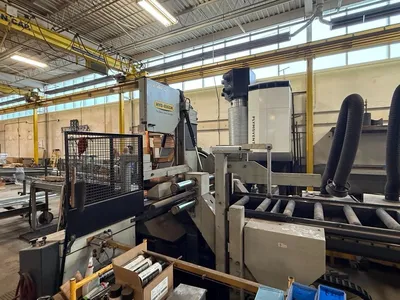

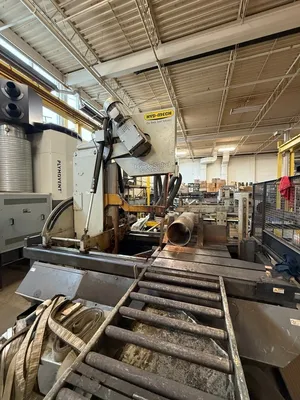

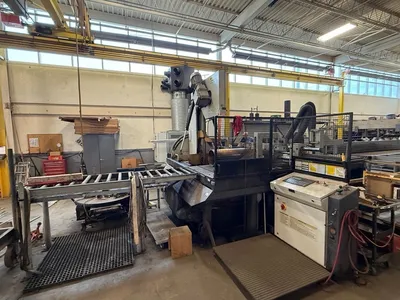

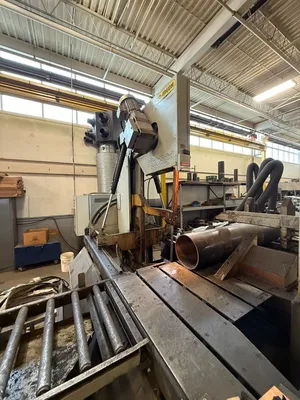

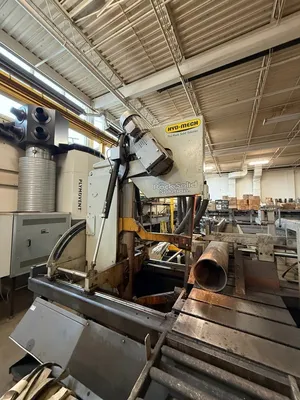

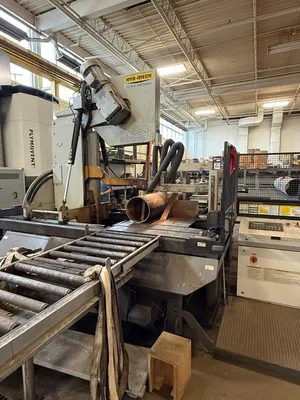

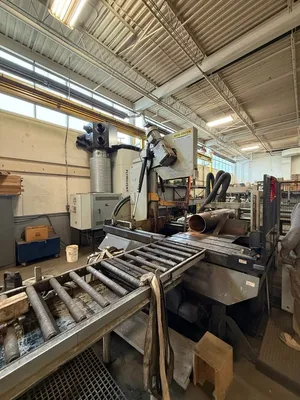

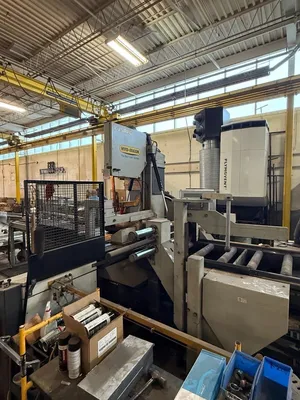

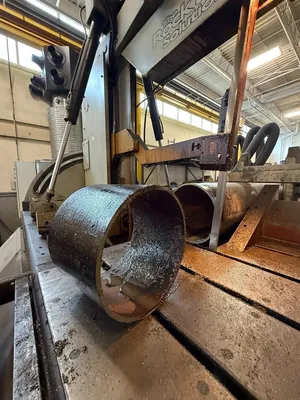

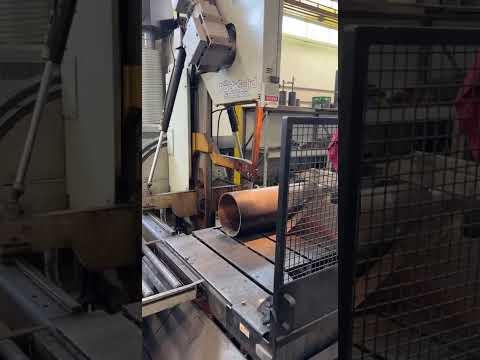

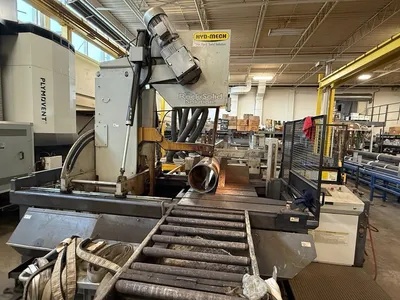

HYD-MECH V-25APC Vertical Bandsaw with Automatic Bar Feed

Description

HYD-MECH V-25APC Vertical Bandsaw with Automatic Bar Feed

MAKE: HYD-MECH
MODEL: V-25APC

POWER: 480 V / 60 Hz / 3 Ph

SPECS
CUTTING CAPACITY:
Rectangular Capacity at 90°: 30 in H × 25 in W
Round Capacity at 90°: 25 in Diameter
Rectangular Capacity at 45°: 21 in H × 25 in W
Round Capacity at 45°: 21 in Diameter
Rectangular Capacity at 60° Right: 14.5 in H × 25 in W
Round Capacity at 60° Right: 14.5 in Diameter
Rectangular Capacity at 60° Left: 13.5 in H × 25 in W
Round Capacity at 60° Left: 13.5 in Diameter

BLADE SPECIFICATIONS:
Blade Size: 1.5 in W × 252.5 in L
Blade Thickness: 0.050 in
Blade Speed: 75–350 SFM
Blade Drive: 10 HP VFD
Cutting Head Cant Angle: Approximately 6°
Mitering Range: 60° Left to 60° Right
Blade Guides: Carbide Inserts
Blade Tensioning: Hydraulic
Drive Wheel Diameter: 32 in
Idler Wheel Diameter: 24 in

AUTOMATIC FEED SYSTEM:
Feed Type: Automatic Shuttle Bar Feed
Feed Drive: Rack-and-Pinion Servo Drive
Automatic Kerf Compensation
Programmable Automatic Mitering
Hydraulic Material Clamping
Full-Stroke Hydraulic Vises
Adjustable Vise Pressure
Table Height: 44 in
Maximum Table Workload: 10,000 lb

WEIGHT:15,000 lb
DIMENSIONS: 254 × 158 × 123 in
