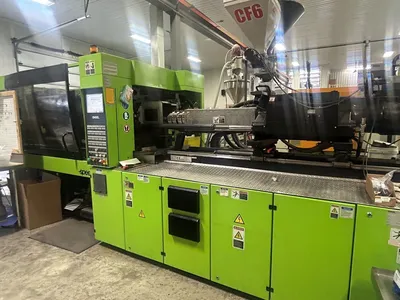

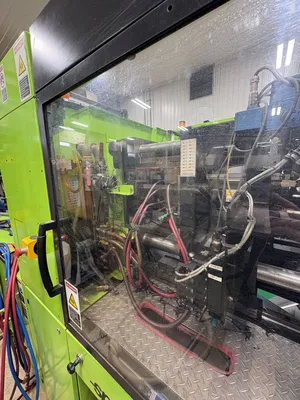

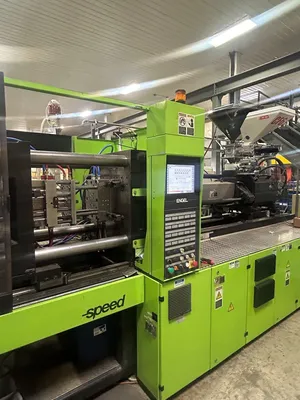

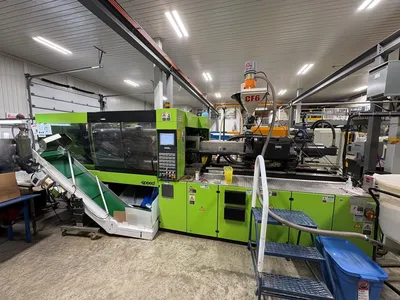

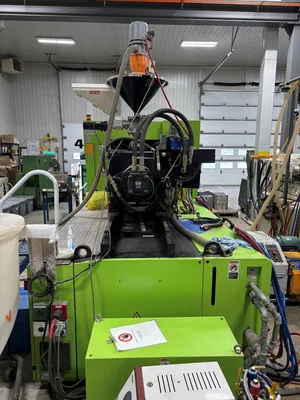

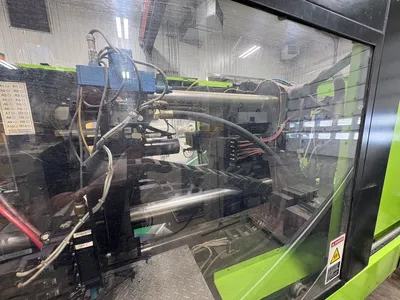

2006 ENGEL SPEED 200/45 US 200-TON PLASTIC INJECTION MOLDING MACHINE
Have one to sell?
ConditionUsed
1 available
2006 ENGEL SPEED 200/45 US 200-TON PLASTIC INJECTION MOLDING MACHINE
MAKE: ENGEL
MODEL: SPEED 200/45 US
MFG DATE: 04/2006
MACHINE TYPE: Hydraulic Plastic Injection Molding Machine
CLAMPING FORCE: 1,800 kN
POWER: 460V / 50Hz / 3Ph
CONTROL VOLTAGE: 115V AC / 24V DC
CLAMPING UNIT SPECS:
Clamping Force: 1,800 kN (202 US Tons)
Opening Force: 420 kN
Ejector Stroke: 140 mm (5.51 in)
Ejector Force: 61 kN
INJECTION UNIT SPECS:
Screw Diameter: 45 mm (1.77 in)
Maximum Shot Volume: 223 cm³
Maximum Screw Speed: 330 RPM
Maximum Injection Rate: 1,272 cm³/s
Maximum Injection Rate (Increased): 1,272 cm³/s
Maximum Injection Pressure: 1,424 bar
Maximum Injection Pressure (Increased): 2,076 bar
Nozzle Stroke: 360 mm (14.17 in)
Nozzle Contact Force: 72.3 kN
*CONDITION:
LG99-1 Proximity Switch Defective
Temporary Limit Switch Installed to Provide Signal
2006 ENGEL SPEED 200/45 US 200-TON PLASTIC INJECTION MOLDING MACHINE
MAKE: ENGEL
MODEL: SPEED 200/45 US
MFG DATE: 04/2006
MACHINE TYPE: Hydraulic Plastic Injection Molding Machine
CLAMPING FORCE: 1,800 kN
POWER: 460V / 50Hz / 3Ph
CONTROL VOLTAGE: 115V AC / 24V DC
CLAMPING UNIT SPECS:
Clamping Force: 1,800 kN (202 US Tons)
Opening Force: 420 kN
Ejector Stroke: 140 mm (5.51 in)
Ejector Force: 61 kN
INJECTION UNIT SPECS:
Screw Diameter: 45 mm (1.77 in)
Maximum Shot Volume: 223 cm³
Maximum Screw Speed: 330 RPM
Maximum Injection Rate: 1,272 cm³/s
Maximum Injection Rate (Increased): 1,272 cm³/s
Maximum Injection Pressure: 1,424 bar
Maximum Injection Pressure (Increased): 2,076 bar
Nozzle Stroke: 360 mm (14.17 in)
Nozzle Contact Force: 72.3 kN
*CONDITION:
LG99-1 Proximity Switch Defective
Temporary Limit Switch Installed to Provide Signal
2006 ENGEL SPEED 200/45 US 200-TON PLASTIC INJECTION MOLDING MACHINE
MAKE: ENGEL
MODEL: SPEED 200/45 US
MFG DATE: 04/2006
MACHINE TYPE: Hydraulic Plastic Injection Molding Machine
CLAMPING FORCE: 1,800 kN
POWER: 460V / 50Hz / 3Ph
CONTROL VOLTAGE: 115V AC / 24V DC
CLAMPING UNIT SPECS:
Clamping Force: 1,800 kN (202 US Tons)
Opening Force: 420 kN
Ejector Stroke: 140 mm (5.51 in)
Ejector Force: 61 kN
INJECTION UNIT SPECS:
Screw Diameter: 45 mm (1.77 in)
Maximum Shot Volume: 223 cm³
Maximum Screw Speed: 330 RPM
Maximum Injection Rate: 1,272 cm³/s
Maximum Injection Rate (Increased): 1,272 cm³/s
Maximum Injection Pressure: 1,424 bar
Maximum Injection Pressure (Increased): 2,076 bar
Nozzle Stroke: 360 mm (14.17 in)
Nozzle Contact Force: 72.3 kN
*CONDITION:
LG99-1 Proximity Switch Defective
Temporary Limit Switch Installed to Provide Signal
Imperial
| Tonnage | 202 T |
| Shot Size | 7.5 oz |
| Horz/Vert | 'Horz' |
2006 ENGEL SPEED 200/45 US 200-TON PLASTIC INJECTION MOLDING MACHINE
MAKE: ENGEL
MODEL: SPEED 200/45 US
MFG DATE: 04/2006
MACHINE TYPE: Hydraulic Plastic Injection Molding Machine
CLAMPING FORCE: 1,800 kN
POWER: 460V / 50Hz / 3Ph
CONTROL VOLTAGE: 115V AC / 24V DC
CLAMPING UNIT SPECS:
Clamping Force: 1,800 kN (202 US Tons)
Opening Force: 420 kN
Ejector Stroke: 140 mm (5.51 in)
Ejector Force: 61 kN
INJECTION UNIT SPECS:
Screw Diameter: 45 mm (1.77 in)
Maximum Shot Volume: 223 cm³
Maximum Screw Speed: 330 RPM
Maximum Injection Rate: 1,272 cm³/s
Maximum Injection Rate (Increased): 1,272 cm³/s
Maximum Injection Pressure: 1,424 bar
Maximum Injection Pressure (Increased): 2,076 bar
Nozzle Stroke: 360 mm (14.17 in)
Nozzle Contact Force: 72.3 kN
*CONDITION:
LG99-1 Proximity Switch Defective
Temporary Limit Switch Installed to Provide Signal
